PSMN4R8-100PSEQ
Nexperia

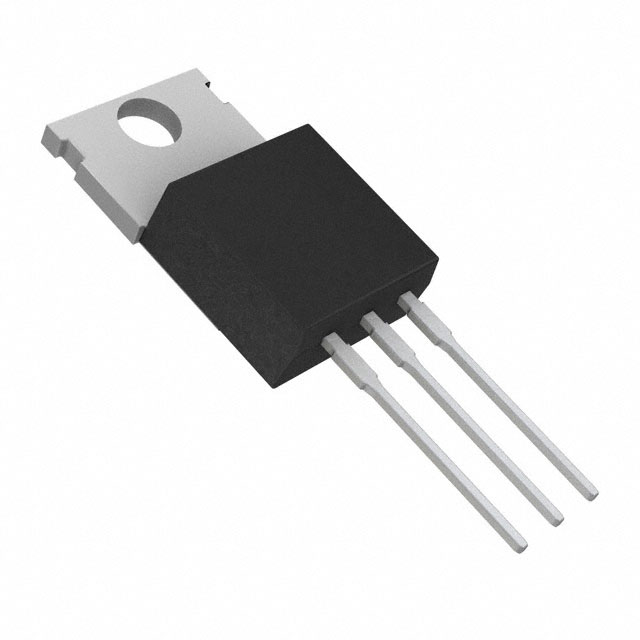

Images are for reference only.
See Product Specifications for product details.
Buy PSMN4R8-100PSEQ with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PSMN4R8-100PSEQ with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PSMN4R8-100PSEQ Datasheet| Part Number | PSMN4R8-100PSEQ |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 100V TO220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 50pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $1.546 | $1.243 | $1.133 | $0.917 | $0.774 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | PSMN4R8-100PSEQ |
|---|---|
| Manufacturer | Nexperia |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 100V TO220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48534 pcs |
| Datasheet | PSMN4R8-100PSEQ.pdf |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220AB |
| Series | - |
| Rds On (Max) @ Id, Vgs | 5 mOhm @ 25A, 10V |
| Power Dissipation (Max) | 405W (Tc) |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Other Names | 1727-2471 568-12856 568-12856-ND 934068633127 PSMN4R8-100PSEQ-ND |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 14400pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 278nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 120A (Tj) 405W (Tc) Through Hole TO-220AB |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tj) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Nexperia series electronic components. We have 48534 pcs of NexperiaPSMN4R8-100PSEQ in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
