PH1330AL,115
Nexperia

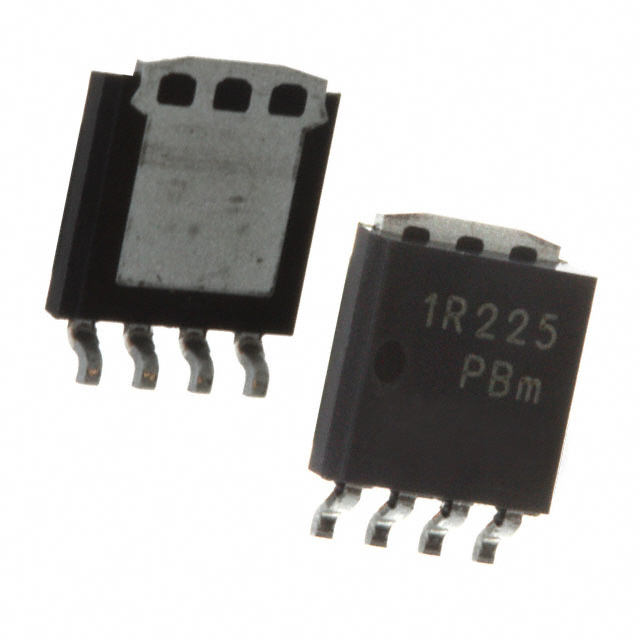

Images are for reference only.
See Product Specifications for product details.
Buy PH1330AL,115 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PH1330AL,115 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PH1330AL,115 Datasheet| Part Number | PH1330AL,115 |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 30V 100A LFPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | PH1330AL,115 |
|---|---|
| Manufacturer | Nexperia |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 30V 100A LFPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4956 pcs |
| Datasheet | PH1330AL,115.pdf |
| Vgs(th) (Max) @ Id | 2.15V @ 1mA |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | LFPAK56, Power-SO8 |
| Series | TrenchMOS™ |
| Rds On (Max) @ Id, Vgs | 1.3 mOhm @ 15A, 10V |
| Power Dissipation (Max) | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1023, 4-LFPAK |
| Other Names | 934064142115 |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 6227pF @ 12V |
| Gate Charge (Qg) (Max) @ Vgs | 100nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 100A (Tc) Surface Mount LFPAK56, Power-SO8 |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Nexperia series electronic components. We have 4956 pcs of NexperiaPH1330AL,115 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
