BUK7J1R4-40HX
Nexperia

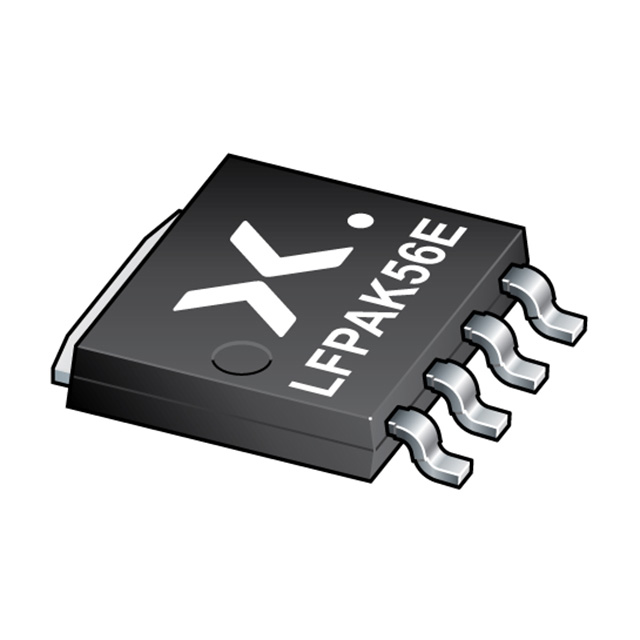

Images are for reference only.
See Product Specifications for product details.
Buy BUK7J1R4-40HX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BUK7J1R4-40HX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BUK7J1R4-40HX Datasheet| Part Number | BUK7J1R4-40HX |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 40V 120A LFPAK56 |
| Lead Free Status / RoHS Status |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | BUK7J1R4-40HX |
|---|---|
| Manufacturer | Nexperia |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 40V 120A LFPAK56 |
| Lead Free Status / RoHS Status | |
| Quantity Available | 79558 pcs |
| Datasheet | BUK7J1R4-40HX.pdf |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Vgs (Max) | +20V, -10V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | LFPAK56, Power-SO8 |
| Series | Automotive, AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 1.4 mOhm @ 25A, 10V |
| Power Dissipation (Max) | 395W (Ta) |
| Packaging | Cut Tape (CT) |
| Package / Case | SOT-1023, 4-LFPAK |
| Other Names | 1727-7419-1 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Input Capacitance (Ciss) (Max) @ Vds | 8155pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 126nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 120A (Ta) 395W (Ta) Surface Mount LFPAK56, Power-SO8 |
| Current - Continuous Drain (Id) @ 25°C | 120A (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Nexperia series electronic components. We have 79558 pcs of NexperiaBUK7J1R4-40HX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
