PCMF2DFN1XL
Nexperia

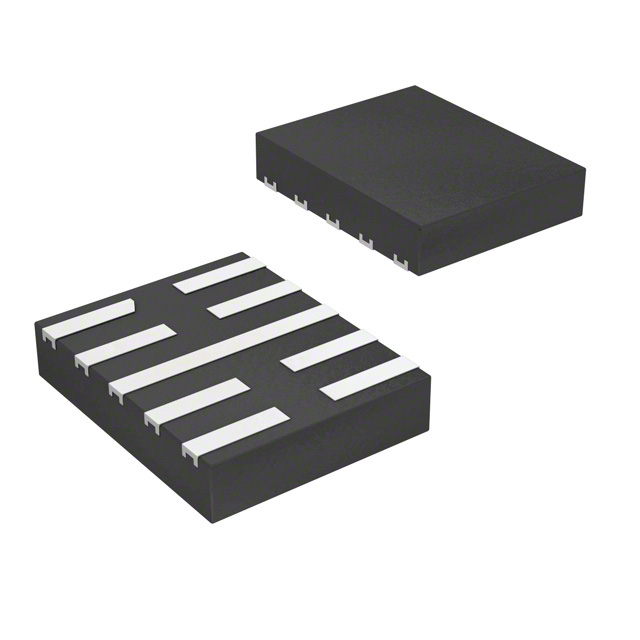

Images are for reference only.
See Product Specifications for product details.
Buy PCMF2DFN1XL with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PCMF2DFN1XL with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PCMF2DFN1XL Datasheet| Part Number | PCMF2DFN1XL |
|---|---|
| Manufacturer | Nexperia |
| Description | COMMON MODE CHOKE 4LN SMD ESD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | PCMF2DFN1XL |
|---|---|
| Manufacturer | Nexperia |
| Product Category | Common Mode Chokes |
| Description | COMMON MODE CHOKE 4LN SMD ESD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4165 pcs |
| Datasheet | PCMF2DFN1XL.pdf |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Series | PCM |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 9-XFDFN |
| Other Names | 1727-1824-1 568-11459-1 568-11459-1-ND |
| Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 4 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.020" (0.50mm) |
| Filter Type | Signal Line |
| Features | ESD |
| Detailed Description | 4 Line Common Mode Choke Surface Mount DCR 5 Ohm (Typ) |
| DC Resistance (DCR) (Max) | 5 Ohm (Typ) |
| Current Rating (Max) | - |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Nexperia series electronic components. We have 4165 pcs of NexperiaPCMF2DFN1XL in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
