BAT54CV,115
Nexperia

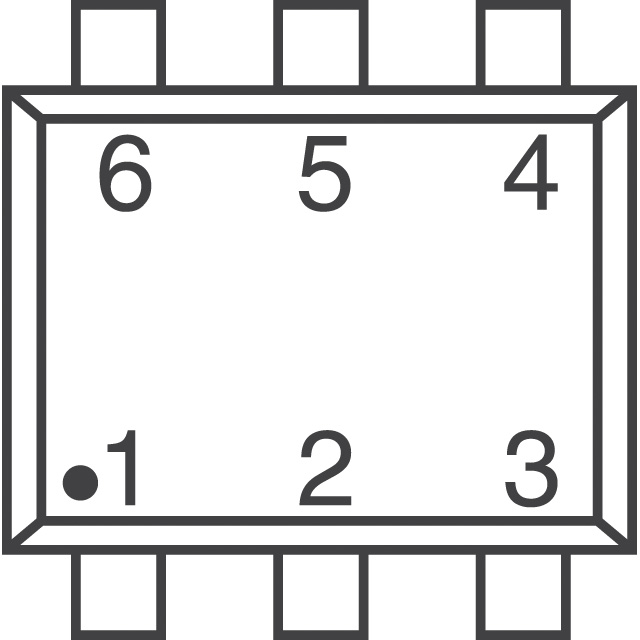

Images are for reference only.
See Product Specifications for product details.
Buy BAT54CV,115 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy BAT54CV,115 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload BAT54CV,115 Datasheet| Part Number | BAT54CV,115 |
|---|---|
| Manufacturer | Nexperia |
| Description | DIODE ARRAY SCHOTTKY 30V SOT666 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
4000pcs | 8000pcs | 12000pcs | 28000pcs | ||
|---|---|---|---|---|---|---|
| $0.032 | $0.029 | $0.025 | $0.024 | |||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | BAT54CV,115 |
|---|---|
| Manufacturer | Nexperia |
| Product Category | Diodes - Rectifiers - Arrays |
| Description | DIODE ARRAY SCHOTTKY 30V SOT666 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1043739 pcs |
| Datasheet | BAT54CV,115.pdf |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Supplier Device Package | SOT-666 |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Other Names | 1727-3568-2 568-3414-2 568-3414-2-ND 934058073115 BAT54CV T/R |
| Operating Temperature - Junction | 125°C (Max) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky |
| Diode Configuration | 2 Pair Common Cathode |
| Detailed Description | Diode Array 2 Pair Common Cathode Schottky 30V 200mA (DC) Surface Mount SOT-563, SOT-666 |
| Current - Reverse Leakage @ Vr | 2µA @ 25V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Base Part Number | BAT54CV |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Nexperia series electronic components. We have 1043739 pcs of NexperiaBAT54CV,115 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
