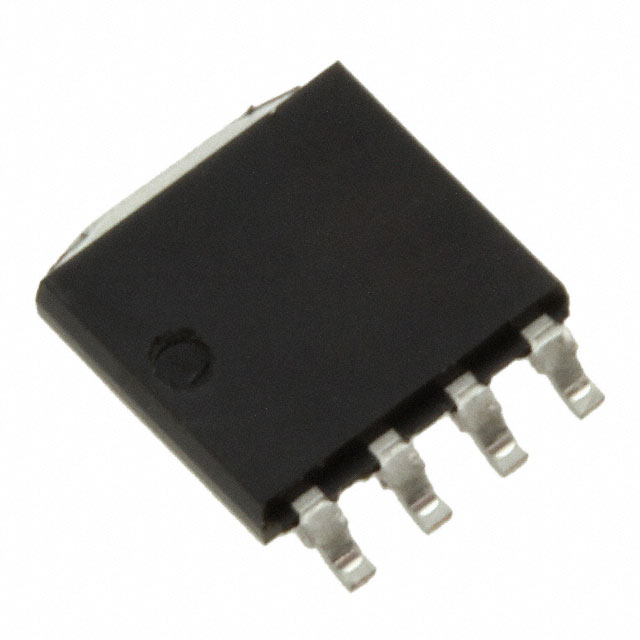

PSMN0R9-30YLDX
Nexperia
Images are for reference only.
See Product Specifications for product details.
Buy PSMN0R9-30YLDX with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PSMN0R9-30YLDX with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PSMN0R9-30YLDX Datasheet| Part Number | PSMN0R9-30YLDX |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 30V 300A 56LFPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1500pcs | |||||
|---|---|---|---|---|---|---|
| $0.288 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | PSMN0R9-30YLDX |
|---|---|
| Manufacturer | Nexperia |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 30V 300A 56LFPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72950 pcs |
| Datasheet | PSMN0R9-30YLDX.pdf |
| Vgs(th) (Max) @ Id | 2.2V @ 1mA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | LFPAK56, Power-SO8 |
| Series | - |
| Rds On (Max) @ Id, Vgs | 0.87 mOhm @ 25A, 10V |
| Power Dissipation (Max) | 291W |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1023, 4-LFPAK |
| Other Names | 1727-1858-2 568-11554-2 568-11554-2-ND 934068233115 PSMN0R9-30YLDX-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 7668pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 109nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 300A 291W Surface Mount LFPAK56, Power-SO8 |
| Current - Continuous Drain (Id) @ 25°C | 300A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Nexperia series electronic components. We have 72950 pcs of NexperiaPSMN0R9-30YLDX in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
