PMCM440VNEZ
Nexperia

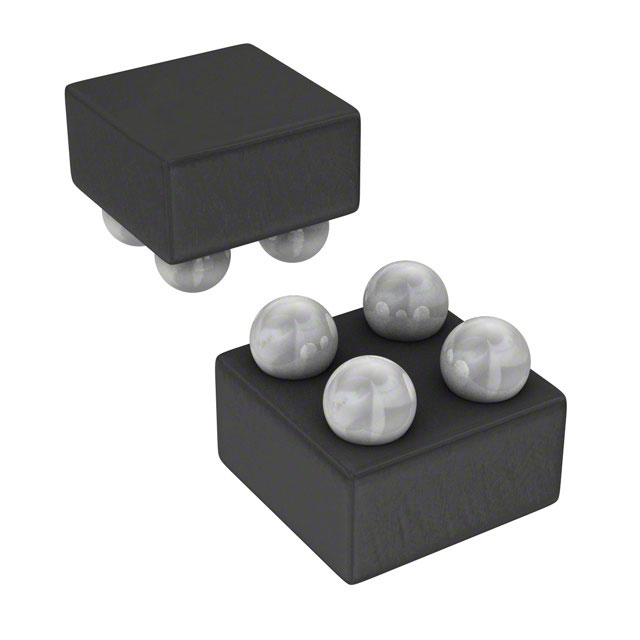

Images are for reference only.
See Product Specifications for product details.
Buy PMCM440VNEZ with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy PMCM440VNEZ with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload PMCM440VNEZ Datasheet| Part Number | PMCM440VNEZ |
|---|---|
| Manufacturer | Nexperia |
| Description | MOSFET N-CH 12V 4WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
9000pcs | |||||
|---|---|---|---|---|---|---|
| $0.037 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | PMCM440VNEZ |
|---|---|
| Manufacturer | Nexperia |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 12V 4WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 637205 pcs |
| Datasheet | PMCM440VNEZ.pdf |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 4-WLCSP (0.78x0.78) |
| Series | - |
| Rds On (Max) @ Id, Vgs | 67 mOhm @ 3A, 4.5V |
| Power Dissipation (Max) | 400mW (Ta), 12.5W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLCSP |
| Other Names | 1727-2274-2 568-12560-2 568-12560-2-ND 934068625084 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 360pF @ 6V |
| Gate Charge (Qg) (Max) @ Vgs | 8.2nC @ 4.5V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V |
| Drain to Source Voltage (Vdss) | 12V |
| Detailed Description | N-Channel 12V 3.9A (Ta) 400mW (Ta), 12.5W (Tc) Surface Mount 4-WLCSP (0.78x0.78) |
| Current - Continuous Drain (Id) @ 25°C | 3.9A (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Nexperia series electronic components. We have 637205 pcs of NexperiaPMCM440VNEZ in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
