G4W-2212P-US-TV5-HP-DC100
Omron

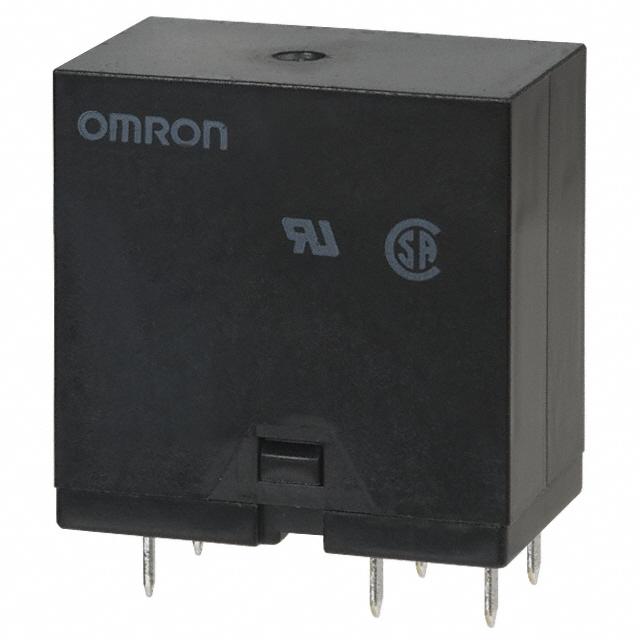

Images are for reference only.
See Product Specifications for product details.
Buy G4W-2212P-US-TV5-HP-DC100 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy G4W-2212P-US-TV5-HP-DC100 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload G4W-2212P-US-TV5-HP-DC100 Datasheet| Part Number | G4W-2212P-US-TV5-HP-DC100 |
|---|---|
| Manufacturer | Omron |
| Description | RELAY GEN PURPOSE DPST 15A 100V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | G4W-2212P-US-TV5-HP-DC100 |
|---|---|
| Manufacturer | Omron |
| Product Category | Power Relays, Over 2 Amps |
| Description | RELAY GEN PURPOSE DPST 15A 100V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5724 pcs |
| Datasheet | G4W-2212P-US-TV5-HP-DC100.pdf |
| Turn On Voltage (Max) | 80 VDC |
| Turn Off Voltage (Min) | 10 VDC |
| Termination Style | PC Pin |
| Switching Voltage | 250VAC, 125VDC - Max |
| Series | G4W |
| Release Time | 5ms |
| Relay Type | General Purpose |
| Packaging | Bulk |
| Other Names | G4W 6038F G4W-2212P-US-TV5-HP-DC100-ND G4W2212PUS5HP100DC G4W2212PUSTV5HPDC100 Z5211 |
| Operating Temperature | -25°C ~ 55°C |
| Operate Time | 20ms |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - |
| Detailed Description | General Purpose Relay DPST-NO (2 Form A) 100VDC Coil Through Hole |
| Contact Rating (Current) | 15A |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Form | DPST-NO (2 Form A) |
| Coil Voltage | 100VDC |
| Coil Type | Non Latching |
| Coil Resistance | 12.5 kOhms |
| Coil Power | 800 mW |
| Coil Current | 8.0mA |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 5724 pcs of OmronG4W-2212P-US-TV5-HP-DC100 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
