Home > Manufacturers > Omron > XF2H-3815-1LW

XF2H-3815-1LW

Omron

  • XF2H-3815-1LW

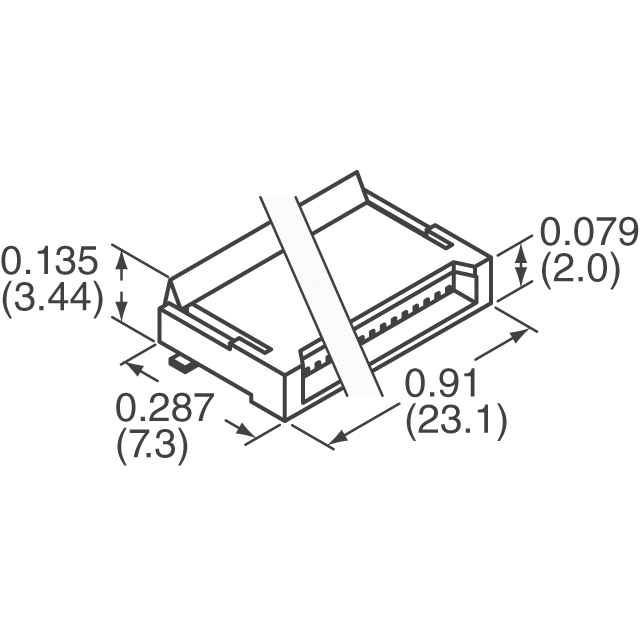

Images are for reference only.
See Product Specifications for product details.
Buy XF2H-3815-1LW with confidence from GFG-TX.com, 1 Year Warranty

Request a Quote

Dowload XF2H-3815-1LW Datasheet
Part Number XF2H-3815-1LW
Manufacturer Omron
Description CONN FPC 38POS 0.50MM R/A
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
In Stock 5601 pcs
Reference Price
(In US Dollars)
Get a quote
Submit a Request For Quotation on quantities greater than those displayed.
Target Price(USD):
Quantity:
Total:
$

Product parameter

Part Number XF2H-3815-1LW
Manufacturer Omron
Product Category FFC, FPC (Flat Flexible) Connectors
Description CONN FPC 38POS 0.50MM R/A
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 5601 pcs
Datasheet XF2H-3815-1LW.pdf
Voltage Rating 50V
Termination Solder
Series XF2H
Pitch 0.020" (0.50mm)
Packaging Tape & Reel (TR)
Other Names OC655TR
XF2H38151LW
Operating Temperature -30°C ~ 85°C
Number of Positions 38
Mounting Type Surface Mount, Right Angle
Mating Cycles 20
Material Flammability Rating UL94 V-0
Locking Feature Rotary Lock, Backlock
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Housing Material Polyamide (PA6T), Nylon 6T
Housing Color Natural
Height Above Board 0.079" (2.00mm)
Flat Flex Type FPC
Features -
FFC, FCB Thickness 0.30mm
Detailed Description 38 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating 0.5A
Contact Material Copper Alloy
Contact Finish Thickness 78.7µin (2.00µm)
Contact Finish Tin Alloy
Connector/Contact Type Contacts, Top and Bottom
Cable End Type Straight
Actuator Material Liquid Crystal Polymer (LCP)
Actuator Color Black
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 5601 pcs of OmronXF2H-3815-1LW in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
