XF2J-3024-11A-R100
Omron

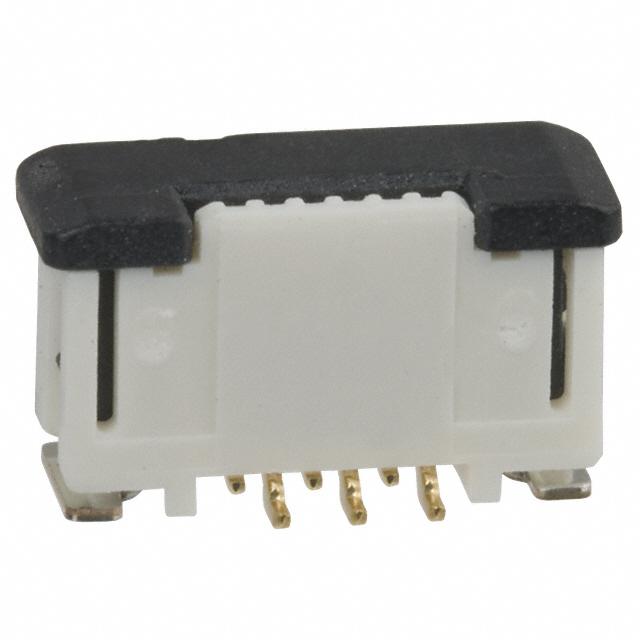

Images are for reference only.
See Product Specifications for product details.
Buy XF2J-3024-11A-R100 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XF2J-3024-11A-R100 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XF2J-3024-11A-R100 Datasheet| Part Number | XF2J-3024-11A-R100 |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC VERT 30POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XF2J-3024-11A-R100 |
|---|---|
| Manufacturer | Omron |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Description | CONN FPC VERT 30POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3995 pcs |
| Datasheet | XF2J-3024-11A-R100.pdf |
| Voltage Rating | 50V |
| Termination | Solder |
| Series | XF2J |
| Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) |
| Other Names | XF2J-3024-11A-R100 BY OMZ XF2J-3024-11A-R100 BYOMZ XF2J302411AR100 XF2J302411AR100BYOMZ |
| Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 30 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Housing Color | Natural |
| Height Above Board | 0.163" (4.15mm) |
| Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm |
| Detailed Description | 30 Position FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount |
| Current Rating | 0.5A |
| Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold |
| Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered |
| Actuator Material | - |
| Actuator Color | Black |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 3995 pcs of OmronXF2J-3024-11A-R100 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
