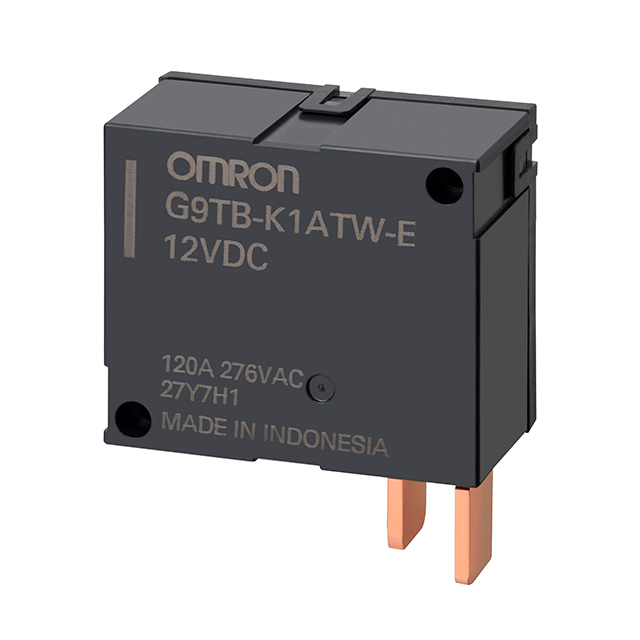

G9TB-K1ATW-E DC12
Omron
Images are for reference only.
See Product Specifications for product details.
Buy G9TB-K1ATW-E DC12 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy G9TB-K1ATW-E DC12 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload G9TB-K1ATW-E DC12 Datasheet| Part Number | G9TB-K1ATW-E DC12 |
|---|---|
| Manufacturer | Omron |
| Description | RELAY GEN PURPOSE SPST 120A 12V |
| Lead Free Status / RoHS Status |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 25pcs | 50pcs | 250pcs | 500pcs |
|---|---|---|---|---|---|---|
| $5.87 | $5.218 | $4.957 | $4.696 | $4.044 | $3.783 | |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | G9TB-K1ATW-E DC12 |
|---|---|
| Manufacturer | Omron |
| Product Category | Power Relays, Over 2 Amps |
| Description | RELAY GEN PURPOSE SPST 120A 12V |
| Lead Free Status / RoHS Status | |
| Quantity Available | 9798 pcs |
| Datasheet | G9TB-K1ATW-E DC12.pdf |
| Turn On Voltage (Max) | 9.6 VDC |
| Turn Off Voltage (Min) | - |
| Termination Style | PC Pin, Weld Terminal |
| Switching Voltage | 276VAC - Max |
| Series | G9TB |
| Release Time | 20ms |
| Relay Type | General Purpose |
| Packaging | Tray |
| Other Names | G9TB-K1ATW-E DC12 BYOMI G9TBK1ATWEDC12 G9TBK1ATWEDC12BYOMI Z8841 |
| Operating Temperature | -40°C ~ 85°C |
| Operate Time | 20ms |
| Mounting Type | Free Hanging |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Features | UL Pending |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Free Hanging |
| Contact Rating (Current) | 120A |
| Contact Material | Silver Alloy |
| Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 12VDC |
| Coil Type | Latching, Dual Coil |
| Coil Resistance | 26.6 Ohms |
| Coil Power | 5.4 W |
| Coil Current | 451mA |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 9798 pcs of OmronG9TB-K1ATW-E DC12 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
