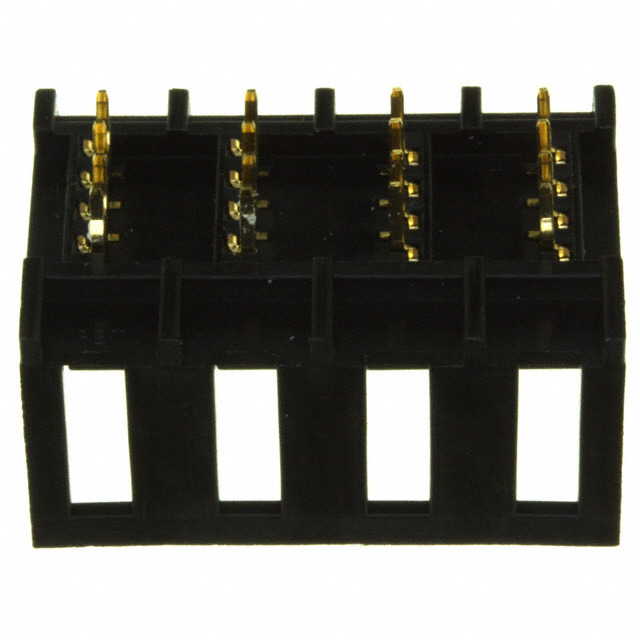

XN2D-4431
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XN2D-4431 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XN2D-4431 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XN2D-4431 Datasheet| Part Number | XN2D-4431 |
|---|---|
| Manufacturer | Omron |
| Description | CONN SKT 4POS-4GANG E-CON 3A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XN2D-4431 |
|---|---|
| Manufacturer | Omron |
| Product Category | Rectangular Connectors - Headers, Receptacles, Female |
| Description | CONN SKT 4POS-4GANG E-CON 3A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18766 pcs |
| Datasheet | XN2D-4431.pdf |
| Voltage Rating | 32VDC |
| Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire |
| Series | XN2 |
| Row Spacing - Mating | 0.256" (6.50mm) |
| Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk |
| Other Names | XN2D4431 Z2790 |
| Operating Temperature | -30°C ~ 75°C |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Number of Positions | 16 (4 x 4 Ports) |
| Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.512" (13.00mm) |
| Insulation Color | Black |
| Ingress Protection | - |
| Features | - |
| Fastening Type | Detent Lock |
| Detailed Description | 16 (4 x 4 Ports) Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold |
| Connector Type | Receptacle |
| Applications | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 18766 pcs of OmronXN2D-4431 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
