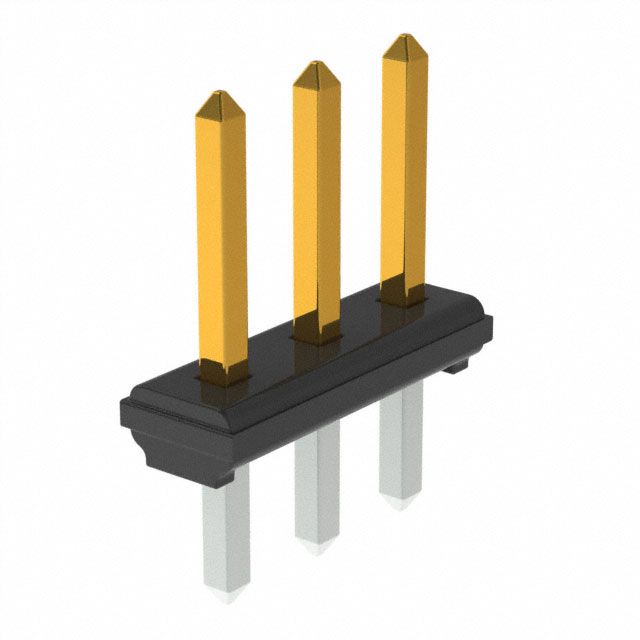

XJ8D-0311
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XJ8D-0311 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XJ8D-0311 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XJ8D-0311 Datasheet| Part Number | XJ8D-0311 |
|---|---|
| Manufacturer | Omron |
| Description | CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | 5000pcs | 10000pcs |
|---|---|---|---|---|---|---|
| $0.231 | $0.219 | $0.167 | $0.146 | $0.106 | $0.105 | |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XJ8D-0311 |
|---|---|
| Manufacturer | Omron |
| Product Category | Rectangular Connectors - Headers, Male Pins |
| Description | CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 219230 pcs |
| Datasheet | XJ8D-0311.pdf |
| Voltage Rating | 300V |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Series | XJ8 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | - |
| Packaging | Bulk |
| Overall Contact Length | 0.339" (8.60mm) |
| Other Names | XJ8D-0311-ND XJ8D0311 Z5650 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 |
| Number of Positions Loaded | All |
| Number of Positions | 3 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black |
| Ingress Protection | - |
| Features | - |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 3 position |
| Current Rating | 2A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Brass, Nickel |
| Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.169" (4.30mm) |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | - |
| Contact Finish - Mating | Gold |
| Connector Type | Header |
| Applications | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 219230 pcs of OmronXJ8D-0311 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
