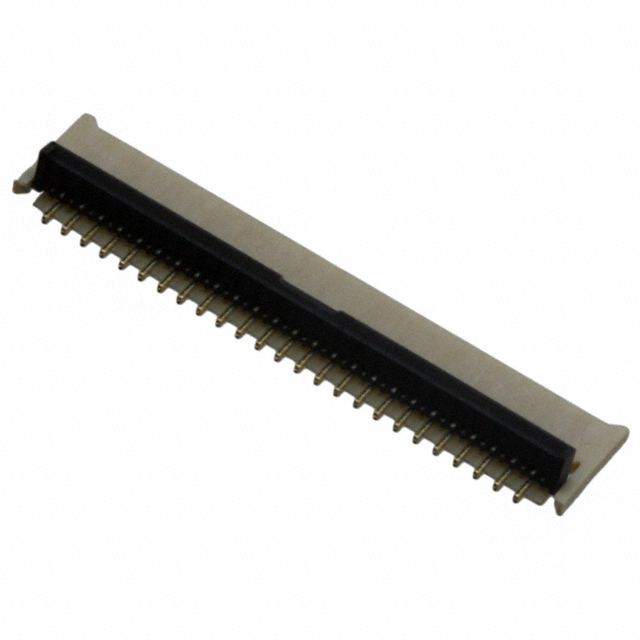

XF3A-515541A
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XF3A-515541A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XF3A-515541A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XF3A-515541A Datasheet| Part Number | XF3A-515541A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC TOP 51POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XF3A-515541A |
|---|---|
| Manufacturer | Omron |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Description | CONN FPC TOP 51POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4403 pcs |
| Datasheet | XF3A-515541A.pdf |
| Voltage Rating | 50V |
| Termination | Solder |
| Series | XF3A |
| Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) |
| Other Names | OR1014TR XF3A-5155-41A XF3A-5155-41A BY OMZ XF3A515541A XF3A515541ABYOMZ |
| Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 51 |
| Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 |
| Locking Feature | Rotary Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Natural |
| Height Above Board | 0.023" (0.59mm) |
| Flat Flex Type | FPC |
| Features | - |
| FFC, FCB Thickness | 0.12mm |
| Detailed Description | 51 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A |
| Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top |
| Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 4403 pcs of OmronXF3A-515541A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
