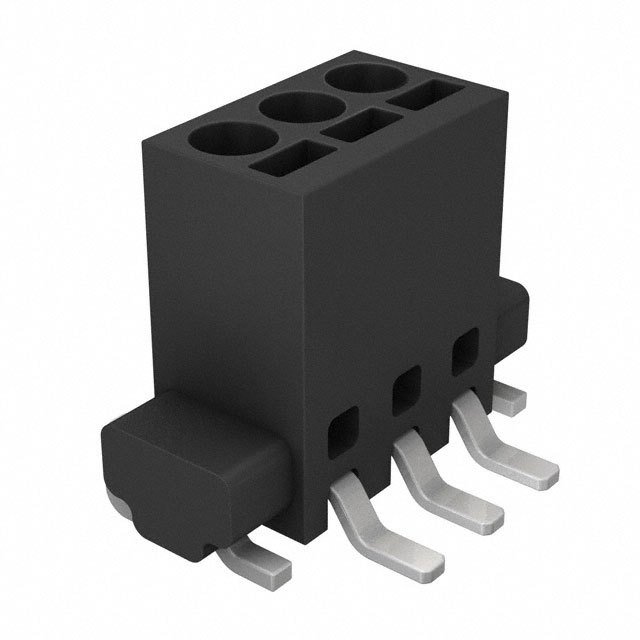

XW4L-03A1-V1
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XW4L-03A1-V1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XW4L-03A1-V1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XW4L-03A1-V1 Datasheet| Part Number | XW4L-03A1-V1 |
|---|---|
| Manufacturer | Omron |
| Description | TERM BLOCK 3POS TOP 2.54MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XW4L-03A1-V1 |
|---|---|
| Manufacturer | Omron |
| Product Category | Terminal Blocks - Wire to Board |
| Description | TERM BLOCK 3POS TOP 2.54MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76586 pcs |
| Datasheet | XW4L-03A1-V1.pdf |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Wire Gauge | 20-26 AWG |
| Voltage | 160V |
| Torque - Screw | - |
| Series | XW4 |
| Screw Thread | - |
| Screw Material - Plating | - |
| Positions Per Level | 3 |
| Pitch | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) |
| Other Names | XW4L03A1V1 |
| Operating Temperature | -45°C ~ 125°C |
| Number of Levels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Vertical with Board |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide |
| Detailed Description | 3 Position Wire to Board Terminal Block Vertical with Board 0.100" (2.54mm) Surface Mount |
| Current | 6A |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Color | Black |
| Clamp Material - Plating | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 76586 pcs of OmronXW4L-03A1-V1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
