XW4K-12A1-V1
Omron

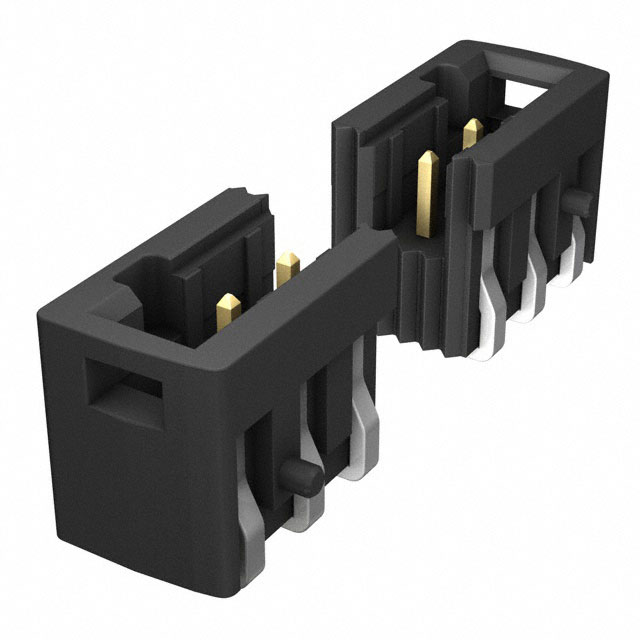

Images are for reference only.
See Product Specifications for product details.
Buy XW4K-12A1-V1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XW4K-12A1-V1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XW4K-12A1-V1 Datasheet| Part Number | XW4K-12A1-V1 |
|---|---|
| Manufacturer | Omron |
| Description | TERM BLOCK HDR 12POS VERT 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XW4K-12A1-V1 |
|---|---|
| Manufacturer | Omron |
| Product Category | Terminal Blocks - Headers, Plugs and Sockets |
| Description | TERM BLOCK HDR 12POS VERT 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26250 pcs |
| Datasheet | XW4K-12A1-V1.pdf |
| Wire Strip Length | 6mm |
| Wire Gauge or Range - mm² | 0.14 ~ 0.5mm² |
| Wire Gauge or Range - AWG | 20-26 AWG |
| Voltage - UL | 160V |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - |
| Termination Style | Solder |
| Series | XW4 |
| Screw Size | - |
| Positions Per Level | 12 |
| Plug Wire Entry | - |
| Pitch | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) |
| Other Names | XW4K12A1V1 |
| Operating Temperature | -45°C ~ 125°C |
| Number of Positions | 12 |
| Number of Levels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.293" (7.44mm) |
| Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Header Orientation | Vertical |
| Features | Board Guide, Latches |
| Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) Vertical Surface Mount |
| Current - UL | 6A |
| Current - IEC | - |
| Contact Tail Length | - |
| Contact Mating Finish | Tin |
| Contact Material | Copper Alloy |
| Color | Black |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 26250 pcs of OmronXW4K-12A1-V1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
