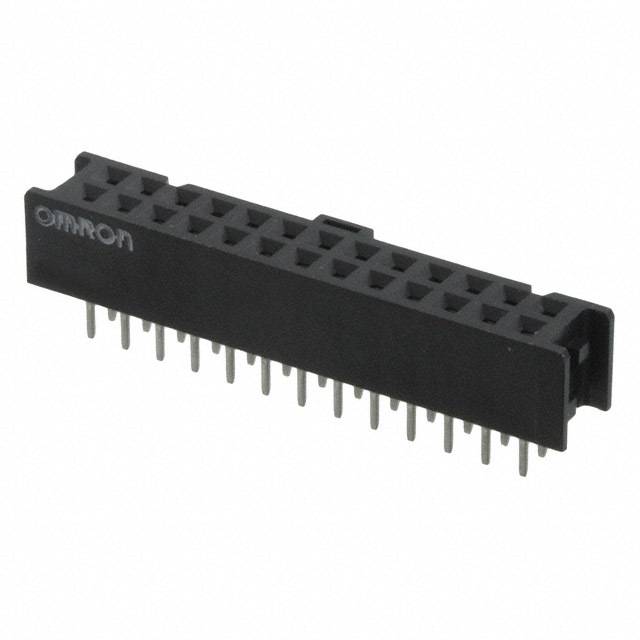

XG4H-2631
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XG4H-2631 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XG4H-2631 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XG4H-2631 Datasheet| Part Number | XG4H-2631 |
|---|---|
| Manufacturer | Omron |
| Description | CONN SOCKET 26POS STRAIGHT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XG4H-2631 |
|---|---|
| Manufacturer | Omron |
| Product Category | Rectangular Connectors - Headers, Receptacles, Female |
| Description | CONN SOCKET 26POS STRAIGHT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50345 pcs |
| Datasheet | XG4H-2631.pdf |
| Voltage Rating | 300VAC |
| Termination | Solder |
| Style | Board to Board |
| Series | XG4 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk |
| Other Names | OR1152 XG4H-2631-ND XG4H2631 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 26 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 9.7mm, 10.1mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.283" (7.19mm) |
| Insulation Color | Black |
| Ingress Protection | - |
| Features | Polarizing Key |
| Fastening Type | Latch Holder |
| Detailed Description | 26 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 3A |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.122" (3.10mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold |
| Connector Type | Receptacle |
| Applications | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 50345 pcs of OmronXG4H-2631 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
