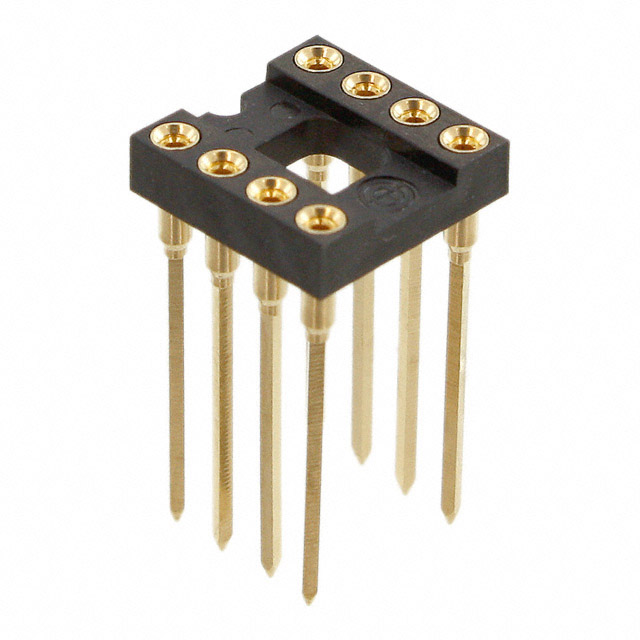

XR2A-0802
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XR2A-0802 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XR2A-0802 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XR2A-0802 Datasheet| Part Number | XR2A-0802 |
|---|---|
| Manufacturer | Omron |
| Description | CONN IC DIP SOCKET 8POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XR2A-0802 |
|---|---|
| Manufacturer | Omron |
| Product Category | Sockets for ICs, Transistors |
| Description | CONN IC DIP SOCKET 8POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66358 pcs |
| Datasheet | XR2A-0802.pdf |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.510" (12.95mm) |
| Termination | Wire Wrap |
| Series | XR2 |
| Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk |
| Other Names | OR1084 XR2A-0802-ND XR2A0802 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 8 (2 x 4) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Open Frame |
| Current Rating | 1A |
| Contact Resistance | 20 mOhm |
| Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 29.5µin (0.75µm) |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 66358 pcs of OmronXR2A-0802 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
RFQ Email: sales@gfg-tx.com
RFQ Email: sales@gfg-tx.com
