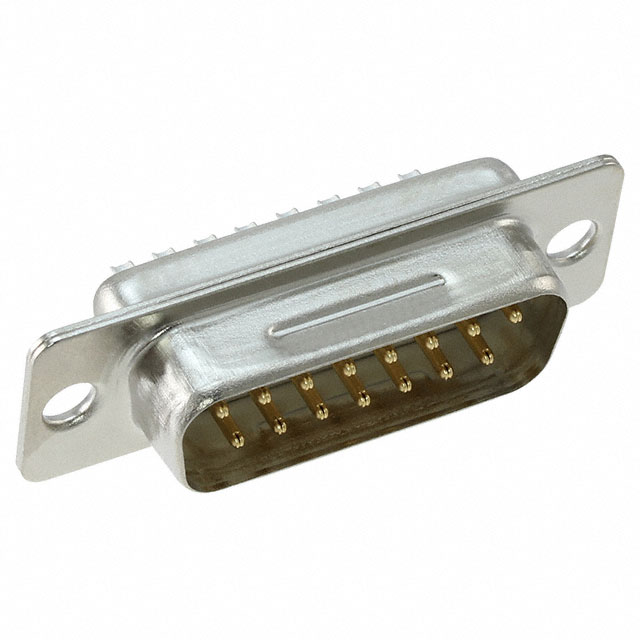

XM3A-1521
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XM3A-1521 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XM3A-1521 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XM3A-1521 Datasheet| Part Number | XM3A-1521 |
|---|---|
| Manufacturer | Omron |
| Description | CONN D-SUB PLUG 15P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XM3A-1521 |
|---|---|
| Manufacturer | Omron |
| Product Category | D-Sub Connectors |
| Description | CONN D-SUB PLUG 15P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8584 pcs |
| Datasheet | XM3A-1521.pdf |
| Wire Gauge | - |
| Voltage Rating | 300V |
| Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) |
| Shell Material, Finish | Steel, Nickel Plated |
| Series | XM3A |
| Packaging | Tray |
| Other Names | XM3A-1521-ND XM3A1521 Z6064 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 |
| Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Features | Shielded |
| Detailed Description | 15 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 5A |
| Contact Type | Signal |
| Contact Material | Brass |
| Contact Form | - |
| Contact Finish Thickness | 16.0µin (0.41µm) |
| Contact Finish | Gold |
| Connector Type | Plug, Male Pins |
| Connector Style | D-Sub |
| Color | White |
| Backset Spacing | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 8584 pcs of OmronXM3A-1521 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
