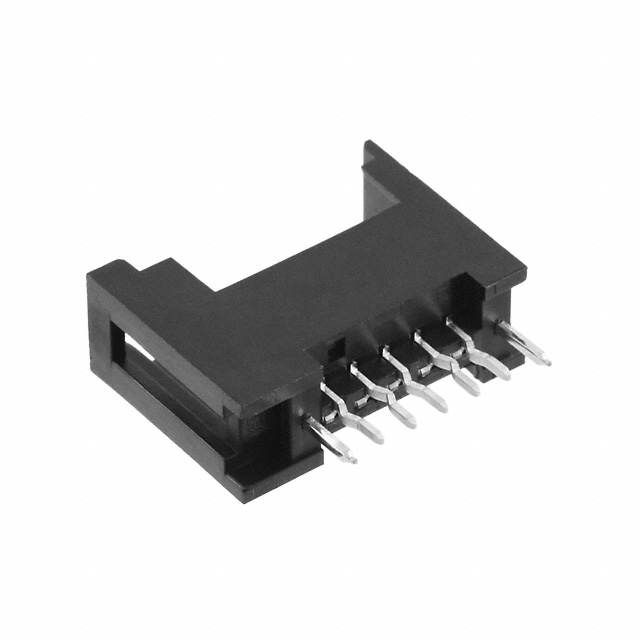

XN2D-1571
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XN2D-1571 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy XN2D-1571 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload XN2D-1571 Datasheet| Part Number | XN2D-1571 |
|---|---|
| Manufacturer | Omron |
| Description | CONNECTOR SKT 5POS ECON PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | XN2D-1571 |
|---|---|
| Manufacturer | Omron |
| Product Category | Rectangular Connectors - Headers, Receptacles, Female |
| Description | CONNECTOR SKT 5POS ECON PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37984 pcs |
| Datasheet | XN2D-1571.pdf |
| Voltage Rating | 32VDC |
| Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire |
| Series | XN2 |
| Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk |
| Other Names | OR1028 XN2D1571 |
| Operating Temperature | -30°C ~ 75°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 5 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.512" (13.00mm) |
| Insulation Color | Black |
| Ingress Protection | - |
| Features | Board Guide |
| Fastening Type | Detent Lock |
| Detailed Description | 5 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold |
| Connector Type | Receptacle |
| Applications | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Omron series electronic components. We have 37984 pcs of OmronXN2D-1571 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
