RJK0391DPA-00#J5A
Renesas Electronics America

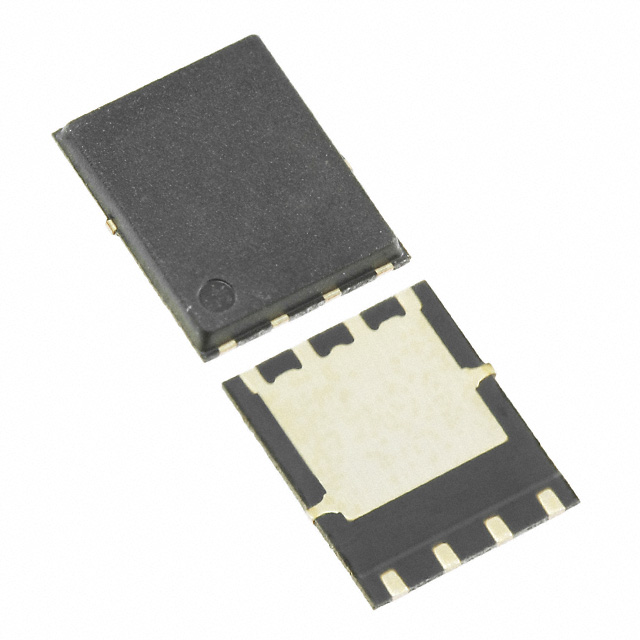

Images are for reference only.
See Product Specifications for product details.
Buy RJK0391DPA-00#J5A with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy RJK0391DPA-00#J5A with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload RJK0391DPA-00#J5A Datasheet| Part Number | RJK0391DPA-00#J5A |
|---|---|
| Manufacturer | Renesas Electronics America |
| Description | MOSFET N-CH 30V 50A 8WPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | RJK0391DPA-00#J5A |
|---|---|
| Manufacturer | Renesas Electronics America |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 30V 50A 8WPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59953 pcs |
| Datasheet | RJK0391DPA-00#J5A.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-WPAK (3) |
| Series | - |
| Rds On (Max) @ Id, Vgs | 2.9 mOhm @ 25A, 10V |
| Power Dissipation (Max) | 50W (Tc) |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerWDFN |
| Other Names | RJK0391DPA-00#J5ACT |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 5600pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 34nC @ 4.5V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 50A (Ta) 50W (Tc) Surface Mount 8-WPAK (3) |
| Current - Continuous Drain (Id) @ 25°C | 50A (Ta) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Renesas Electronics America series electronic components. We have 59953 pcs of Renesas Electronics AmericaRJK0391DPA-00#J5A in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
