RJP60F4DPM-00#T1
Renesas Electronics America

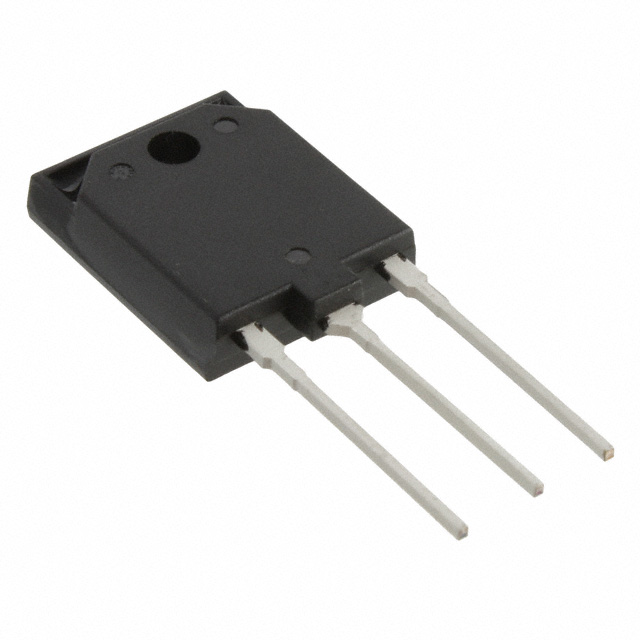

Images are for reference only.
See Product Specifications for product details.
Buy RJP60F4DPM-00#T1 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy RJP60F4DPM-00#T1 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload RJP60F4DPM-00#T1 Datasheet| Part Number | RJP60F4DPM-00#T1 |
|---|---|
| Manufacturer | Renesas Electronics America |
| Description | IGBT 600V 60A 41.2W TO-3PFM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | RJP60F4DPM-00#T1 |
|---|---|
| Manufacturer | Renesas Electronics America |
| Product Category | Transistors - IGBTs - Single |
| Description | IGBT 600V 60A 41.2W TO-3PFM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16827 pcs |
| Datasheet | RJP60F4DPM-00#T1.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 1.82V @ 15V, 30A |
| Test Condition | 400V, 30A, 5 Ohm, 15V |
| Td (on/off) @ 25°C | 45ns/70ns |
| Switching Energy | - |
| Supplier Device Package | TO-3PFM |
| Series | - |
| Power - Max | 41.2W |
| Packaging | Tube |
| Package / Case | TO-3PFM, SC-93-3 |
| Other Names | RJP60F4DPM00T1 |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| IGBT Type | Trench |
| Detailed Description | IGBT Trench 600V 60A 41.2W Through Hole TO-3PFM |
| Current - Collector (Ic) (Max) | 60A |
| Base Part Number | RJP60F |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Renesas Electronics America series electronic components. We have 16827 pcs of Renesas Electronics AmericaRJP60F4DPM-00#T1 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
