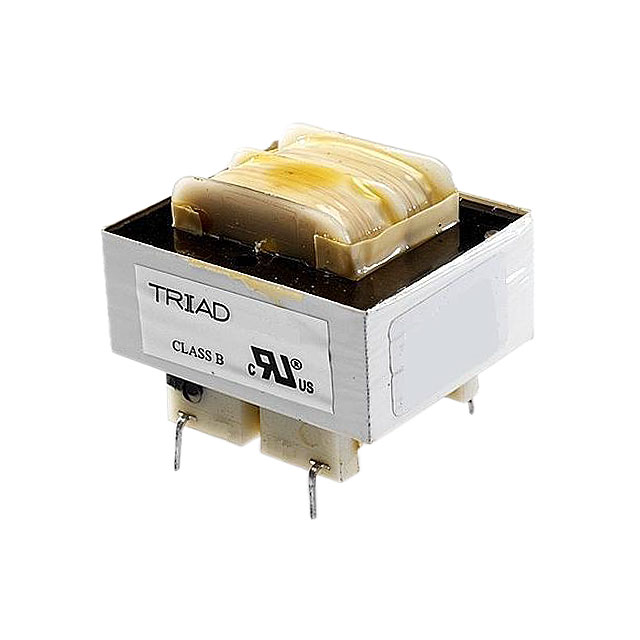

F16-150
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy F16-150 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy F16-150 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload F16-150 Datasheet| Part Number | F16-150 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | F16-150 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14875 pcs |
| Datasheet | F16-150.pdf |
| Weight | 0.25 lb (113.4g) |
| Voltage - Secondary (Full Load) | Parallel 8V, Series 16V |
| Voltage - Primary | 115V |
| Voltage - Isolation | 2500Vrms |
| Type | Laminated Core |
| Termination Style | PC Pin |
| Size / Dimension | 34.93mm L x 28.58mm W |
| Series | Split Pack™, Class 2/3, F |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Single |
| Power - Max | 2.5 VA |
| Other Names | 237-1807 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 30.15mm |
| Current - Output (Max) | Parallel 300mA, Series 150mA |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 14875 pcs of Triad MagneticsF16-150 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
