CSE5-101251
Triad Magnetics

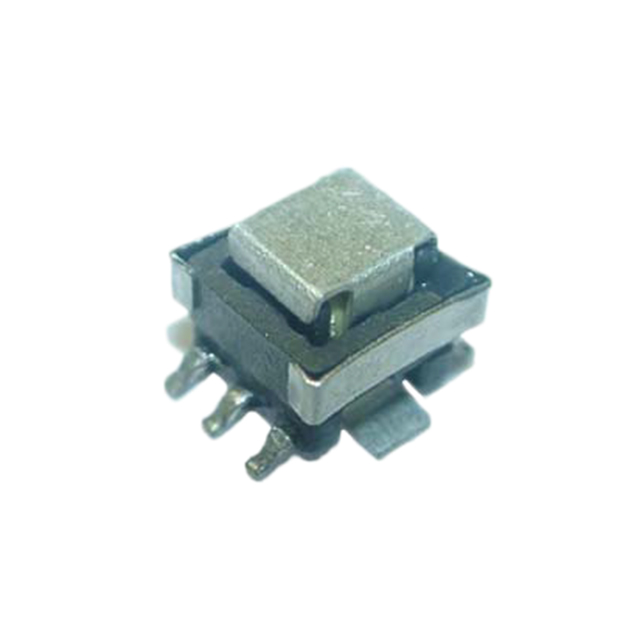

Images are for reference only.
See Product Specifications for product details.
Buy CSE5-101251 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CSE5-101251 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CSE5-101251 Datasheet| Part Number | CSE5-101251 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 1:125 10A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | CSE5-101251 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Current Sense Transformers |
| Description | CURR SENSE XFMR 1:125 10A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47722 pcs |
| Datasheet | CSE5-101251.pdf |
| Weight | - |
| Type | Invasive |
| Turns Ratio - Primary:Secondary | 1:125 |
| Termination Style | Gull Wing |
| Size / Dimension | 0.272" L x 0.303" W (6.90mm x 7.70mm) |
| Series | - |
| Ratings | - |
| Packaging | Cut Tape (CT) |
| Other Names | 237-2092-1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 3mH |
| Height - Seated (Max) | 0.210" (5.33mm) |
| Frequency Range | 250kHz Min |
| Energy Time (E.T.) | - |
| Detailed Description | 10A 1:125 Current Sense Transformer 250kHz Min 8.5 Ohm Secondary 3mH Surface Mount |
| DC Resistance (DCR) | 8.5 Ohm Secondary |
| Current Ratio | - |
| Current Rating | 10A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 47722 pcs of Triad MagneticsCSE5-101251 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
