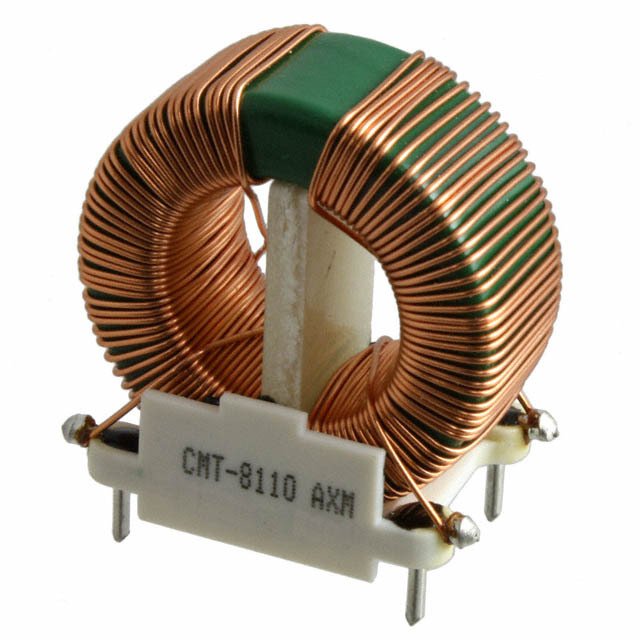

CMT-8110
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy CMT-8110 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CMT-8110 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CMT-8110 Datasheet| Part Number | CMT-8110 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CMC 20MH 2.9A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | CMT-8110 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Common Mode Chokes |
| Description | CMC 20MH 2.9A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22627 pcs |
| Datasheet | CMT-8110.pdf |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Size / Dimension | 1.350" L x 0.800" W (34.29mm x 20.32mm) |
| Series | CMT |
| Ratings | - |
| Packaging | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Other Names | 237-1382 CMT8110 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Lines | 2 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 20mH @ 1kHz |
| Height (Max) | 1.450" (36.83mm) |
| Filter Type | Power Line |
| Features | ESD |
| Detailed Description | 20mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.9A DCR 210 mOhm |
| DC Resistance (DCR) (Max) | 210 mOhm |
| Current Rating (Max) | 2.9A |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 22627 pcs of Triad MagneticsCMT-8110 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
