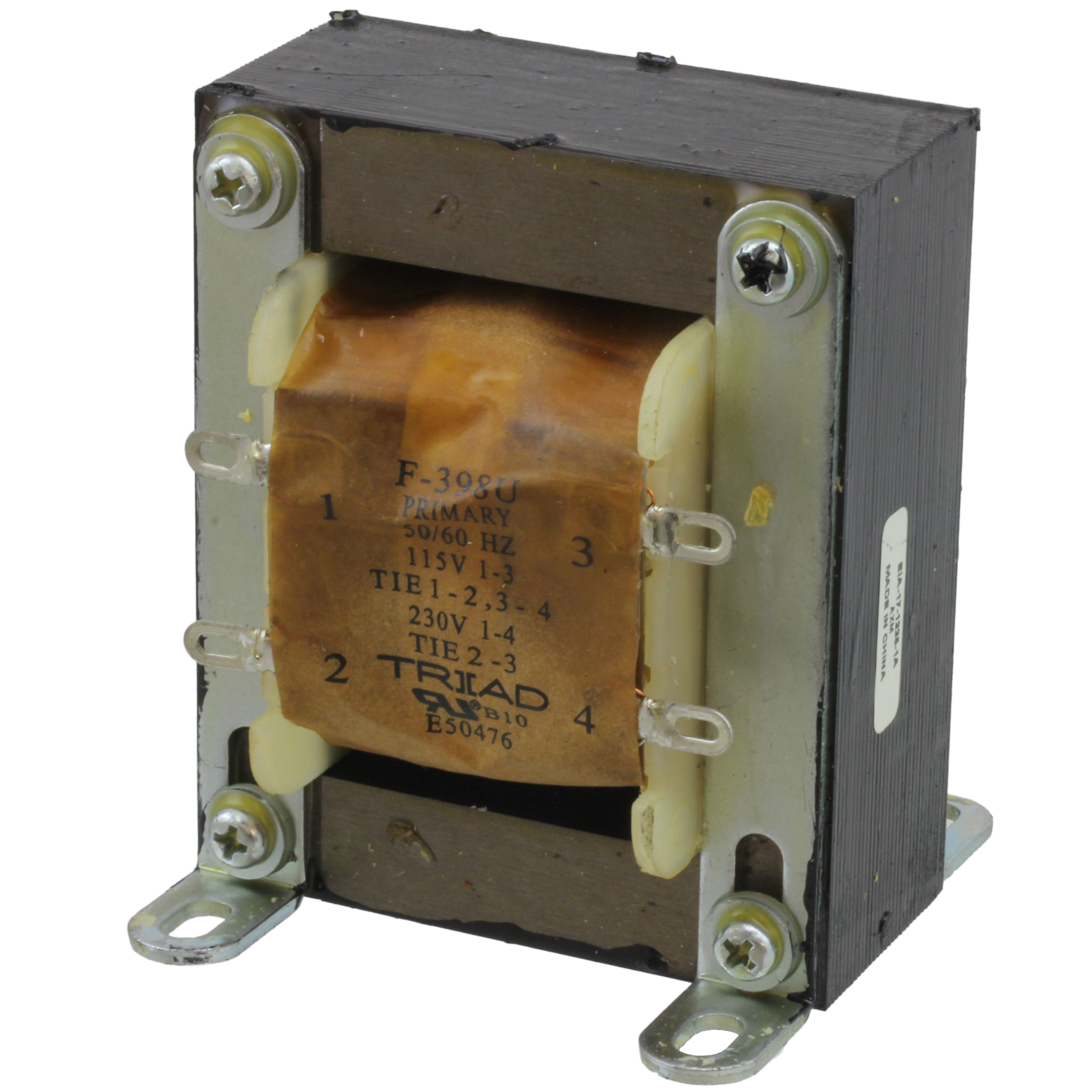

F-398U
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy F-398U with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy F-398U with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload F-398U Datasheet| Part Number | F-398U |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | F-398U |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | POWER TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4329 pcs |
| Datasheet | F-398U.pdf |
| Weight | 4.3 lbs (2kg) |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 1500Vrms |
| Type | Laminated Core |
| Termination Style | Solder Lug |
| Size / Dimension | 96.82mm L x 71.42mm W |
| Series | Control Transformers |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual |
| Power - Max | 72 VA |
| Other Names | 237-1992 |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 86.51mm |
| Current - Output (Max) | Parallel 6A, Series 3A |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 4329 pcs of Triad MagneticsF-398U in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
