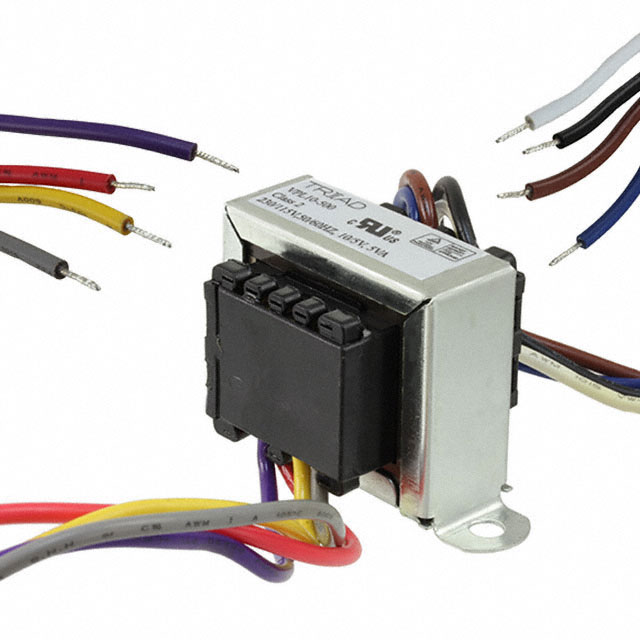

VPL10-500
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy VPL10-500 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy VPL10-500 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload VPL10-500 Datasheet| Part Number | VPL10-500 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR PWR 10V 0.5A CHASSIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | VPL10-500 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | XFRMR PWR 10V 0.5A CHASSIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15338 pcs |
| Datasheet | VPL10-500.pdf |
| Weight | 0.4 lb (181.44g) |
| Voltage - Secondary (Full Load) | 10V |
| Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 3500Vrms |
| Type | Laminated Core |
| Termination Style | Wire Leads |
| Size / Dimension | 36.52mm L x 60.33mm W |
| Series | Chassis Mount: World Series™ |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual |
| Power - Max | 5.0 VA |
| Other Names | 237-1631 |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 36.52mm |
| Current - Output (Max) | 500mA |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 15338 pcs of Triad MagneticsVPL10-500 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
