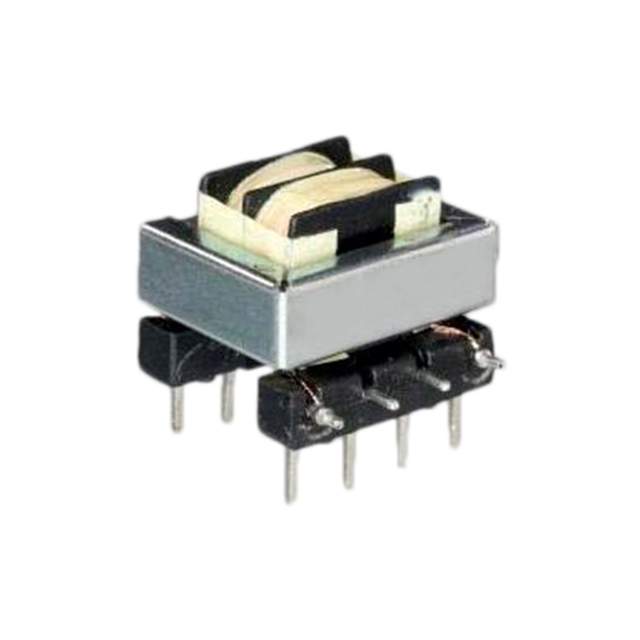

CSE186L
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy CSE186L with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CSE186L with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CSE186L Datasheet| Part Number | CSE186L |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 1:166 10A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | CSE186L |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Current Sense Transformers |
| Description | CURR SENSE XFMR 1:166 10A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54177 pcs |
| Datasheet | CSE186L.pdf |
| Weight | - |
| Type | Invasive |
| Turns Ratio - Primary:Secondary | 1:166 |
| Termination Style | PC Pin |
| Size / Dimension | 0.846" L x 0.945" W (21.50mm x 24.00mm) |
| Series | - |
| Ratings | - |
| Packaging | Bulk |
| Other Names | 237-2084 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Frequency Range | 50Hz ~ 400Hz |
| Energy Time (E.T.) | - |
| Detailed Description | 10A 1:166 Current Sense Transformer 50Hz ~ 400Hz 2 mOhm Primary, 23 Ohm Secondary Through Hole |
| DC Resistance (DCR) | 2 mOhm Primary, 23 Ohm Secondary |
| Current Ratio | - |
| Current Rating | 10A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 54177 pcs of Triad MagneticsCSE186L in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
