FIE220-1-B
Triad Magnetics

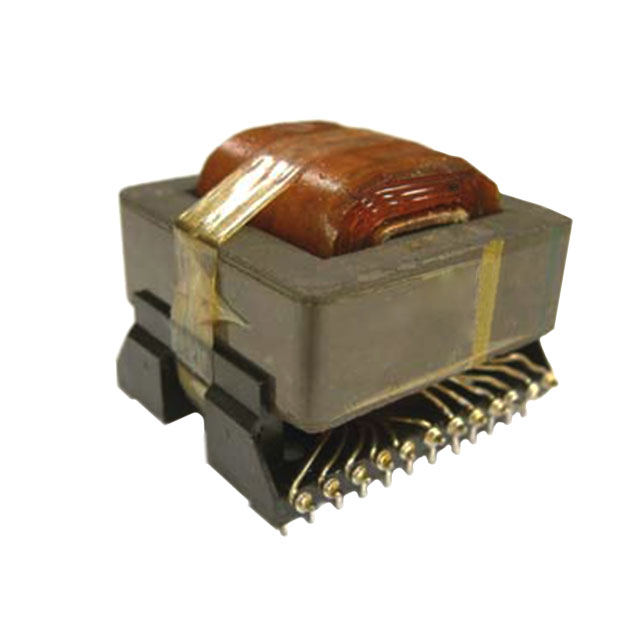

Images are for reference only.
See Product Specifications for product details.
Buy FIE220-1-B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy FIE220-1-B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload FIE220-1-B Datasheet| Part Number | FIE220-1-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | FIXED IND 11.7UH 120A 1 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | FIE220-1-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Fixed Inductors |
| Description | FIXED IND 11.7UH 120A 1 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5699 pcs |
| Datasheet | FIE220-1-B.pdf |
| Type | Wirewound |
| Tolerance | ±10% |
| Supplier Device Package | - |
| Size / Dimension | 2.350" L x 2.050" W (59.69mm x 52.07mm) |
| Shielding | Unshielded |
| Series | - |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Bulk |
| Package / Case | 24-DIP Module |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz |
| Inductance | 11.7µH |
| Height - Seated (Max) | 2.050" (52.07mm) |
| Frequency - Self Resonant | - |
| Detailed Description | 11.7µH Unshielded Wirewound Inductor 120A 1 mOhm 24-DIP Module |
| DC Resistance (DCR) | 1 mOhm |
| Current Rating | 120A |
| Current - Saturation | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 5699 pcs of Triad MagneticsFIE220-1-B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
