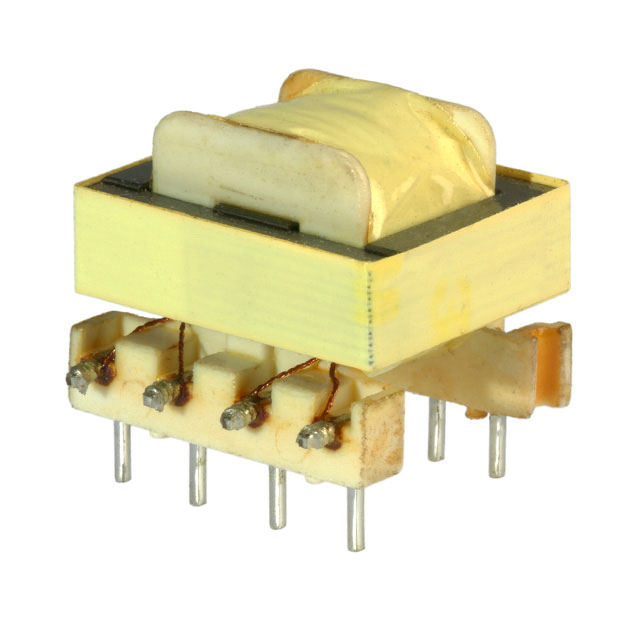

TY-250P
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy TY-250P with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy TY-250P with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload TY-250P Datasheet| Part Number | TY-250P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | PC MOUNT AUDIO TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | TY-250P |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Audio Transformers |
| Description | PC MOUNT AUDIO TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17916 pcs |
| Datasheet | TY-250P.pdf |
| Voltage - Isolation | 1500VAC |
| Turns Ratio - Primary:Secondary | 1:1, 2:1 |
| Transformer Type | Impedance Matching |
| Termination Style | PC Pin |
| Size / Dimension | 0.800" L x 0.770" W (20.32mm x 19.56mm) |
| Series | TY |
| Return Loss | - |
| Power Level | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 2.8dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 1kCT |
| Impedance - Primary (Ohms) | 1kCT |
| Height - Seated (Max) | 0.700" (17.78mm) |
| Frequency Response | ±1dB |
| Frequency Range | 20Hz ~ 20kHz |
| DC Resistance (DCR) - Secondary | 172 Ohm |
| DC Resistance (DCR) - Primary | 172 Ohm |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 17916 pcs of Triad MagneticsTY-250P in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
