AX02-304R6
Triad Magnetics

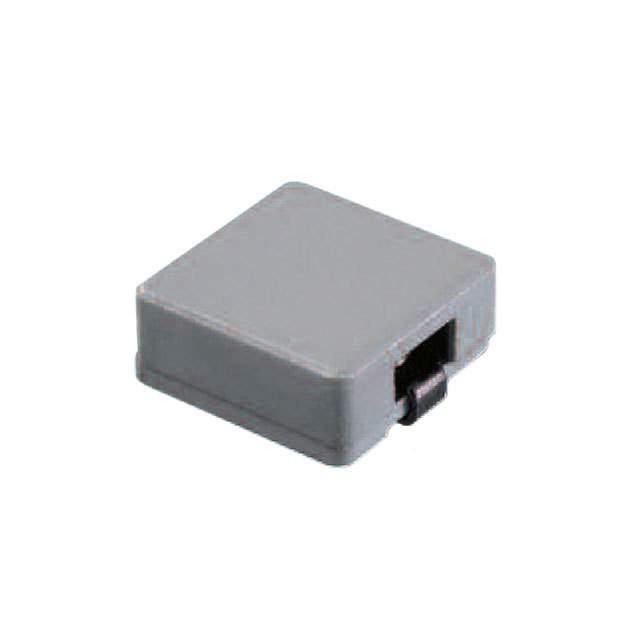

Images are for reference only.
See Product Specifications for product details.
Buy AX02-304R6 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AX02-304R6 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AX02-304R6 Datasheet| Part Number | AX02-304R6 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | FIXED IND 4.6UH 9A 8.3 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | AX02-304R6 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Fixed Inductors |
| Description | FIXED IND 4.6UH 9A 8.3 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91523 pcs |
| Datasheet | AX02-304R6.pdf |
| Type | Wirewound |
| Tolerance | ±20% |
| Supplier Device Package | SMD |
| Size / Dimension | 0.524" L x 0.591" W (13.30mm x 15.00mm) |
| Shielding | Shielded |
| Series | AX02 |
| Ratings | - |
| Q @ Freq | - |
| Package / Case | 2-SMD, J-Lead |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz |
| Inductance | 4.6µH |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Frequency - Self Resonant | - |
| Features | - |
| Detailed Description | 4.6µH Shielded Wirewound Inductor 9A 8.3 mOhm Max 2-SMD, J-Lead |
| DC Resistance (DCR) | 8.3 mOhm Max |
| Current Rating | 9A |
| Current - Saturation | 14A |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 91523 pcs of Triad MagneticsAX02-304R6 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
