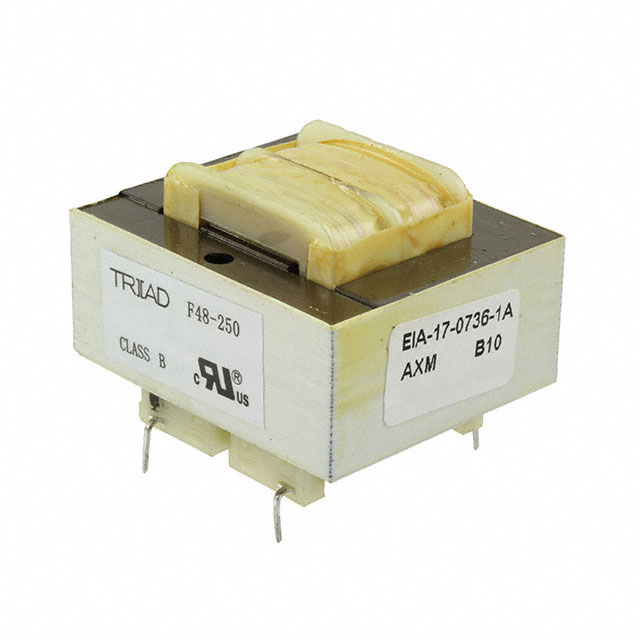

F48-250
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy F48-250 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy F48-250 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload F48-250 Datasheet| Part Number | F48-250 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | F48-250 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11669 pcs |
| Datasheet | F48-250.pdf |
| Weight | 0.7 lb (317.51g) |
| Voltage - Secondary (Full Load) | Parallel 24V, Series 48V |
| Voltage - Primary | 115V |
| Voltage - Isolation | 2500Vrms |
| Type | Laminated Core |
| Termination Style | PC Pin |
| Size / Dimension | 47.63mm L x 39.67mm W |
| Series | Split Pack™, Class 2/3, F |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Single |
| Power - Max | 12 VA |
| Other Names | 237-1836 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 36.50mm |
| Current - Output (Max) | Parallel 500mA, Series 250mA |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 11669 pcs of Triad MagneticsF48-250 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
