VPP36-1560-B
Triad Magnetics

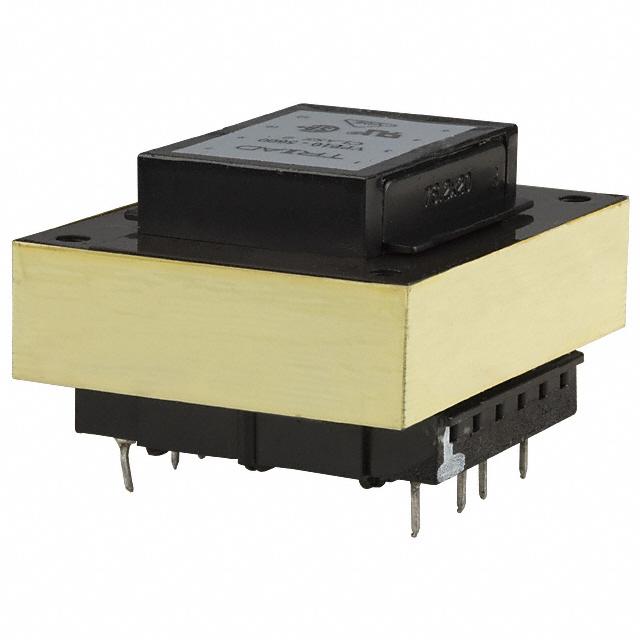

Images are for reference only.
See Product Specifications for product details.
Buy VPP36-1560-B with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy VPP36-1560-B with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload VPP36-1560-B Datasheet| Part Number | VPP36-1560-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED 56VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | VPP36-1560-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | XFRMR LAMINATED 56VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6763 pcs |
| Datasheet | VPP36-1560-B.pdf |
| Weight | 1.7 lbs (771.1g) |
| Voltage - Secondary (Full Load) | Parallel 18V, Series 36V |
| Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 4000Vrms |
| Type | Laminated Core |
| Termination Style | PC Pin |
| Size / Dimension | 76.20mm L x 63.50mm W |
| Series | PC Mount: World Series™ |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual |
| Power - Max | 56 VA |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 46.02mm |
| Current - Output (Max) | Parallel 3.12A, Series 1.56A |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 6763 pcs of Triad MagneticsVPP36-1560-B in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
