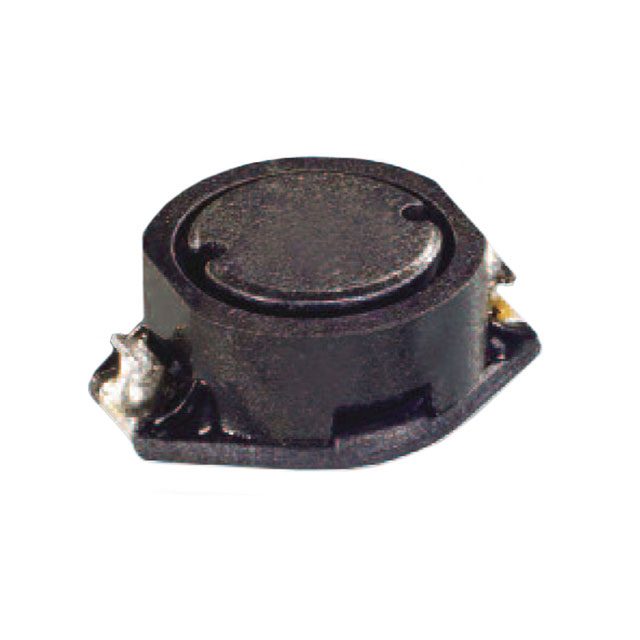

AX1005-102K
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy AX1005-102K with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AX1005-102K with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AX1005-102K Datasheet| Part Number | AX1005-102K |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | FIXED IND 1MH 220MA 3.2 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | AX1005-102K |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Fixed Inductors |
| Description | FIXED IND 1MH 220MA 3.2 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88057 pcs |
| Datasheet | AX1005-102K.pdf |
| Type | Wirewound |
| Tolerance | ±10% |
| Supplier Device Package | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| Shielding | Shielded |
| Series | AX1005 |
| Ratings | - |
| Q @ Freq | 70 @ 100kHz |
| Packaging | Bulk |
| Package / Case | Nonstandard |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz |
| Inductance | 1mH |
| Height - Seated (Max) | 0.193" (4.90mm) |
| Frequency - Self Resonant | 2MHz |
| Detailed Description | 1mH Shielded Wirewound Inductor 220mA 3.2 Ohm Max Nonstandard |
| DC Resistance (DCR) | 3.2 Ohm Max |
| Current Rating | 220mA |
| Current - Saturation | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 88057 pcs of Triad MagneticsAX1005-102K in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
