F-166XP
Triad Magnetics

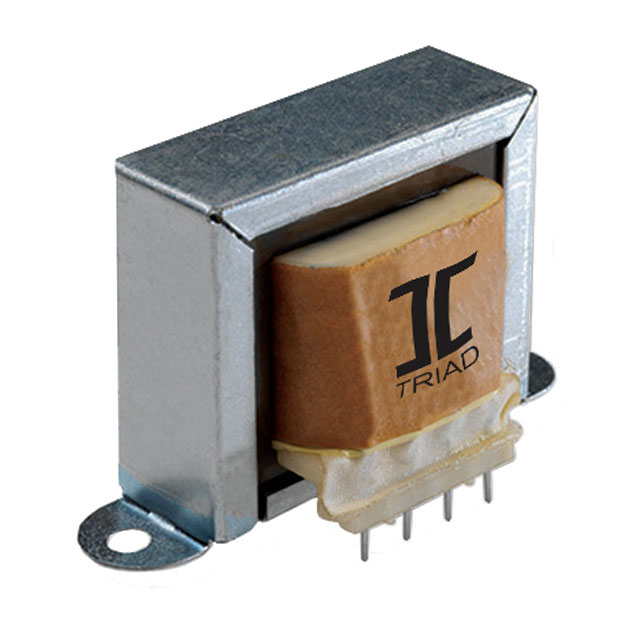

Images are for reference only.
See Product Specifications for product details.
Buy F-166XP with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy F-166XP with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload F-166XP Datasheet| Part Number | F-166XP |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | PC MOUNT POWER TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | F-166XP |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | PC MOUNT POWER TRANSFORMER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9279 pcs |
| Datasheet | F-166XP.pdf |
| Weight | 0.657 lb (298.01g) |
| Voltage - Secondary (Full Load) | Parallel 9V, Series 24V |
| Voltage - Primary | 115V |
| Voltage - Isolation | 1500Vrms |
| Type | Laminated Core |
| Termination Style | PC Pin |
| Size / Dimension | 71.42mm L x 37.29mm W |
| Series | - |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Single |
| Power - Max | 7.5 VA |
| Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 41.28mm |
| Current - Output (Max) | Parallel 500mA, Series 125mA |
| Center Tap | Yes |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 9279 pcs of Triad MagneticsF-166XP in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
