VPS36-4800
Triad Magnetics

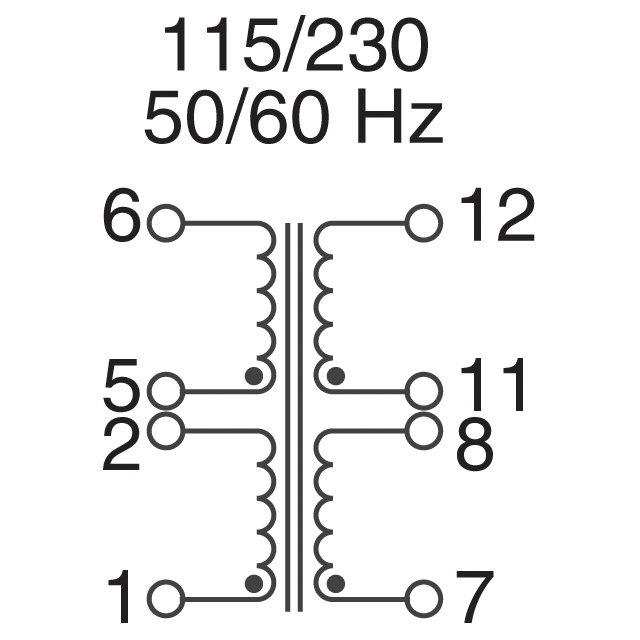

Images are for reference only.
See Product Specifications for product details.
Buy VPS36-4800 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy VPS36-4800 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload VPS36-4800 Datasheet| Part Number | VPS36-4800 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED 175VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | VPS36-4800 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | XFRMR LAMINATED 175VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3209 pcs |
| Datasheet | VPS36-4800.pdf |
| Weight | 5.5 lbs (2.5kg) |
| Voltage - Secondary (Full Load) | Parallel 18V, Series 36V |
| Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 4000Vrms |
| Type | Laminated Core |
| Termination Style | Solder, Quick Connect |
| Size / Dimension | 79.50mm L x 71.37mm W |
| Series | Chassis Mount: World Series™ |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual |
| Power - Max | 175 VA |
| Other Names | 237-1287 VPS364800 |
| Mounting Type | Chassis Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 95.25mm |
| Current - Output (Max) | Parallel 9.6A, Series 4.8A |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 3209 pcs of Triad MagneticsVPS36-4800 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
