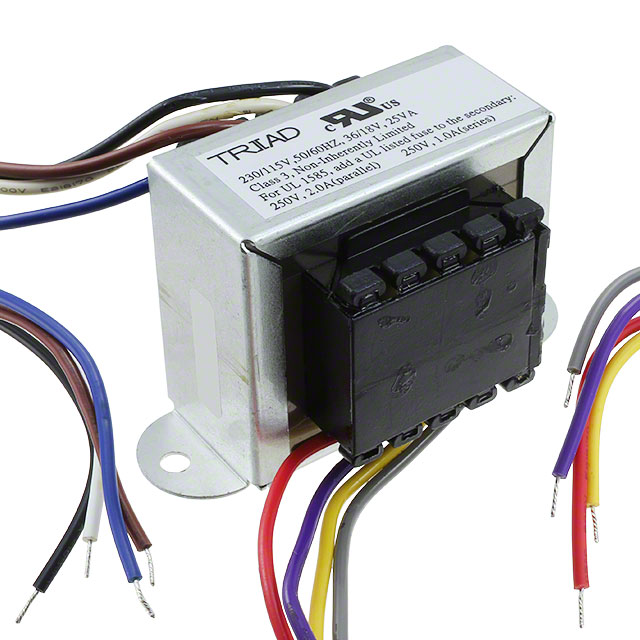

VPL36-700
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy VPL36-700 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy VPL36-700 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload VPL36-700 Datasheet| Part Number | VPL36-700 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR PWR 36V 0.7A CHASSIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | VPL36-700 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | XFRMR PWR 36V 0.7A CHASSIS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10411 pcs |
| Datasheet | VPL36-700.pdf |
| Weight | 1.3 lbs (589.7g) |
| Voltage - Secondary (Full Load) | 36V |
| Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 3500Vrms |
| Type | Laminated Core |
| Termination Style | Wire Leads |
| Size / Dimension | 57.15mm L x 101.6mm W |
| Series | Chassis Mount: World Series™ |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual |
| Power - Max | 25.0 VA |
| Other Names | 237-1665 |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 49.22 mm |
| Current - Output (Max) | 700mA |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 10411 pcs of Triad MagneticsVPL36-700 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
