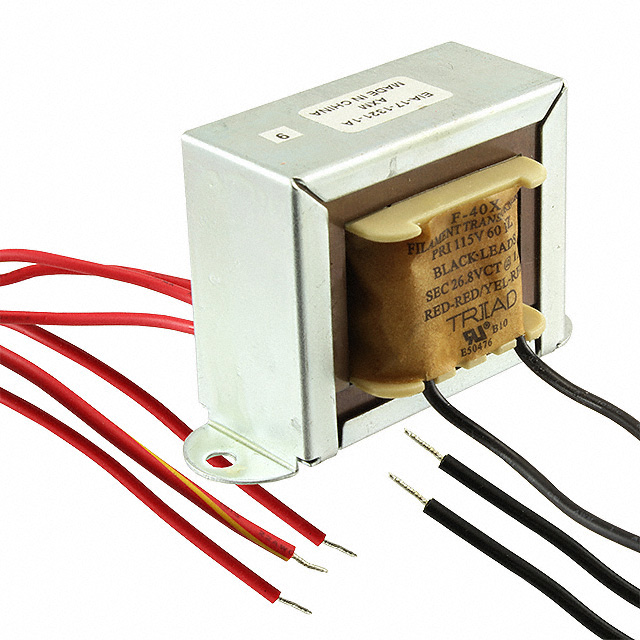

F-40X
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy F-40X with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy F-40X with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload F-40X Datasheet| Part Number | F-40X |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | F-40X |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12788 pcs |
| Datasheet | F-40X.pdf |
| Weight | 1.3 lbs (589.7g) |
| Voltage - Secondary (Full Load) | 26.8V |
| Voltage - Primary | 115V |
| Voltage - Isolation | 1500Vrms |
| Type | Laminated Core |
| Termination Style | Wire Leads |
| Size / Dimension | 84.12mm L x 50.80mm W |
| Series | Single Secondary |
| Secondary Winding(s) | Single |
| Primary Winding(s) | Single |
| Power - Max | 26.8 VA |
| Other Names | 237-1995 |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 49.20mm |
| Current - Output (Max) | 1A |
| Center Tap | Yes |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 12788 pcs of Triad MagneticsF-40X in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
