F-148XP
Triad Magnetics

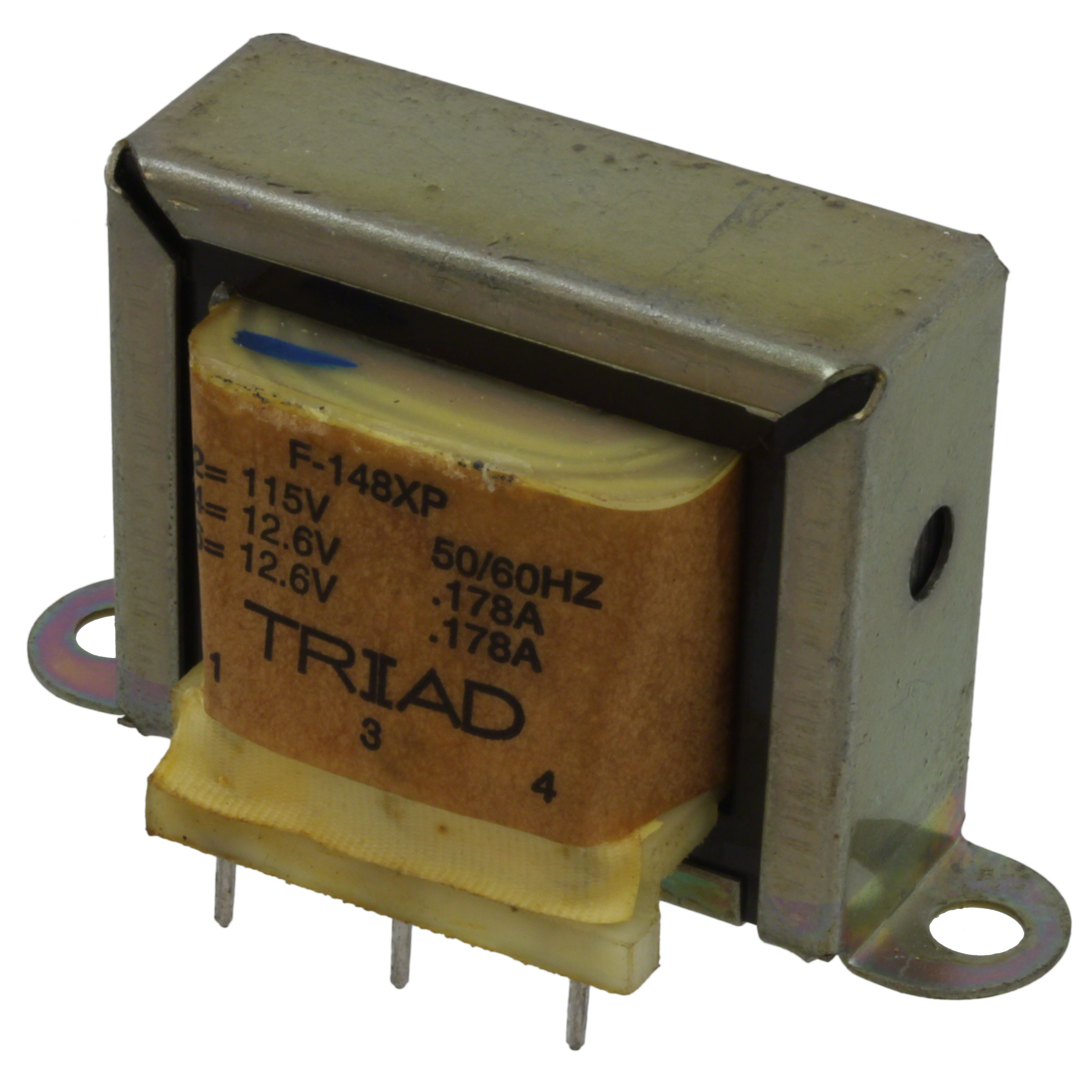

Images are for reference only.
See Product Specifications for product details.
Buy F-148XP with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy F-148XP with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload F-148XP Datasheet| Part Number | F-148XP |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER TRANSFORMER PCB MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | F-148XP |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | POWER TRANSFORMER PCB MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19757 pcs |
| Datasheet | F-148XP.pdf |
| Weight | 0.469 lb (212.73g) |
| Voltage - Secondary (Full Load) | Parallel 12.6V, Series 25.2V |
| Voltage - Primary | 115V |
| Voltage - Isolation | 1500Vrms |
| Type | Laminated Core |
| Termination Style | PC Pin |
| Size / Dimension | 60.32mm L x 31.75mm W |
| Series | Single Primary |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Single |
| Power - Max | 4.5 VA |
| Other Names | 237-1915 |
| Mounting Type | User Defined |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 36.50mm |
| Current - Output (Max) | Parallel 356mA, Series 178mA |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 19757 pcs of Triad MagneticsF-148XP in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
