VPT230-700
Triad Magnetics

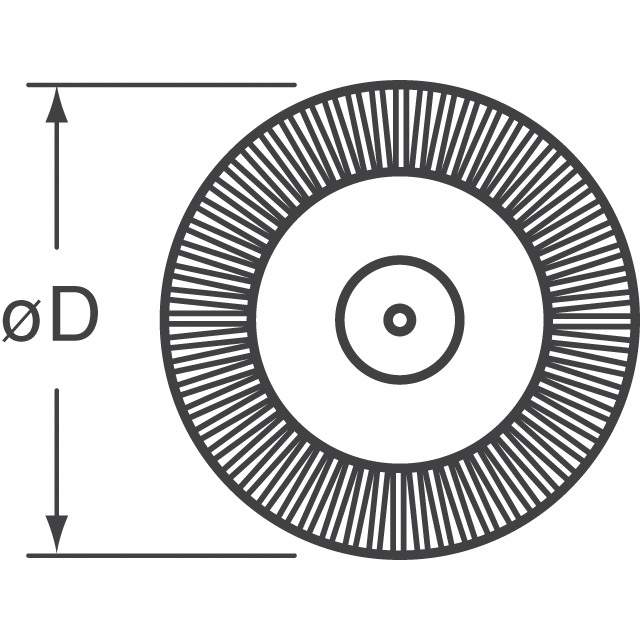

Images are for reference only.
See Product Specifications for product details.
Buy VPT230-700 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy VPT230-700 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload VPT230-700 Datasheet| Part Number | VPT230-700 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR TOROIDAL 160VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | VPT230-700 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | XFRMR TOROIDAL 160VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2562 pcs |
| Datasheet | VPT230-700.pdf |
| Weight | 3.6 lbs (1.6kg) |
| Voltage - Secondary (Full Load) | Parallel 115V, Series 230V |
| Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 4000Vrms |
| Type | Toroidal |
| Termination Style | Wire Leads |
| Size / Dimension | 103.00mm Dia x 48.00mm W |
| Series | Chassis Mount: World Series™ |
| Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual |
| Power - Max | 160 VA |
| Other Names | 237-1345 VPT230700 |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | - |
| Current - Output (Max) | Parallel 1.4A, Series 700mA |
| Center Tap | No |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 2562 pcs of Triad MagneticsVPT230-700 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
