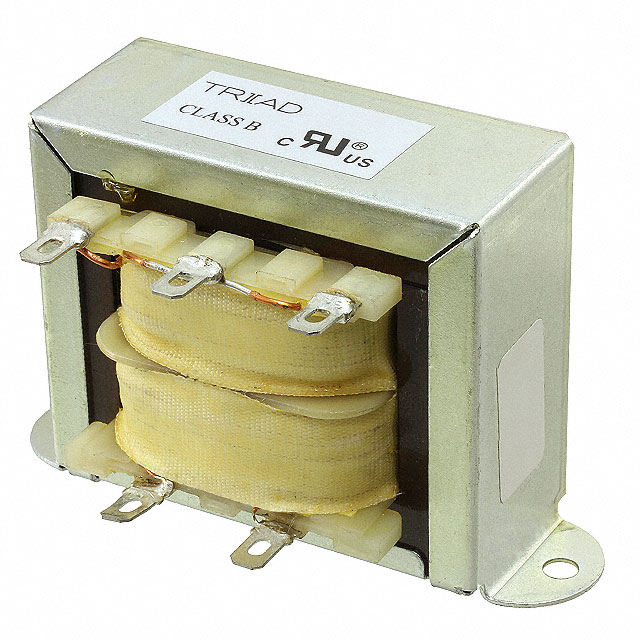

F7-16
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy F7-16 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy F7-16 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload F7-16 Datasheet| Part Number | F7-16 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | F7-16 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9616 pcs |
| Datasheet | F7-16.pdf |
| Weight | 1.7 lbs (771.1g) |
| Voltage - Secondary (Full Load) | 16V |
| Voltage - Primary | 115V |
| Voltage - Isolation | 2500VAC |
| Type | Laminated Core |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Size / Dimension | 93.65mm L x 46.02mm W |
| Series | Quick Pack |
| Secondary Winding(s) | Single |
| Primary Winding(s) | Single |
| Power - Max | 56 VA |
| Other Names | 237-1711 |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 57.15mm |
| Current - Output (Max) | 3.5A |
| Center Tap | Yes |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 9616 pcs of Triad MagneticsF7-16 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
