CME2425-7
Triad Magnetics

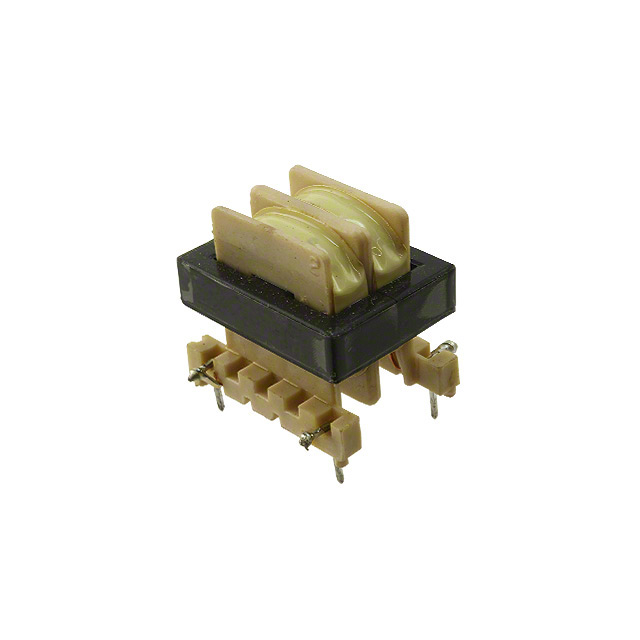

Images are for reference only.
See Product Specifications for product details.
Buy CME2425-7 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy CME2425-7 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload CME2425-7 Datasheet| Part Number | CME2425-7 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CMC 27.7MH 630MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | CME2425-7 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Common Mode Chokes |
| Description | CMC 27.7MH 630MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21139 pcs |
| Datasheet | CME2425-7.pdf |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Size / Dimension | 1.050" L x 1.050" W (26.67mm x 26.67mm) |
| Series | CME |
| Ratings | - |
| Packaging | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Other Names | 10539 237-1226 |
| Operating Temperature | - |
| Number of Lines | 2 |
| Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 27.7mH @ 10kHz |
| Height (Max) | 1.075" (27.31mm) |
| Filter Type | Power Line |
| Features | ESD |
| Detailed Description | 27.7mH @ 10kHz 2 Line Common Mode Choke Through Hole 630mA DCR 820 mOhm |
| DC Resistance (DCR) (Max) | 820 mOhm |
| Current Rating (Max) | 630mA |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 21139 pcs of Triad MagneticsCME2425-7 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
