ET2825-030
Triad Magnetics

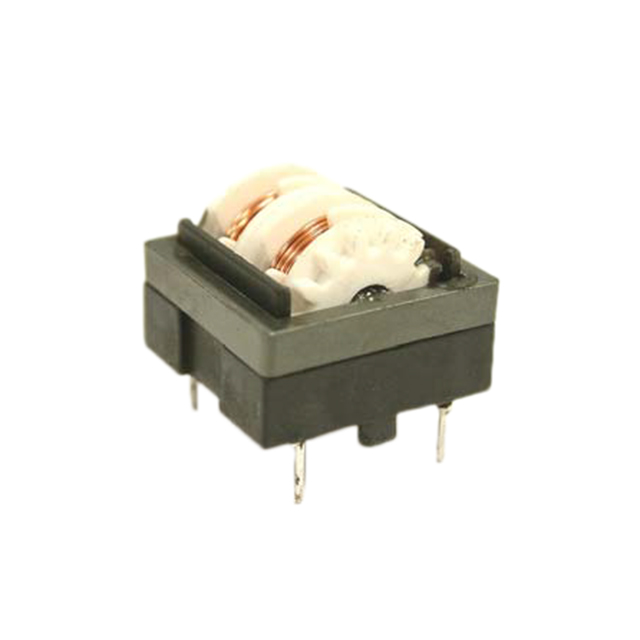

Images are for reference only.
See Product Specifications for product details.
Buy ET2825-030 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ET2825-030 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ET2825-030 Datasheet| Part Number | ET2825-030 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CMC 15.5MH 1.5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | ET2825-030 |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Common Mode Chokes |
| Description | CMC 15.5MH 1.5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40236 pcs |
| Datasheet | ET2825-030.pdf |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Size / Dimension | 1.181" L x 1.181" W (30.00mm x 30.00mm) |
| Series | ET |
| Ratings | - |
| Packaging | Bulk |
| Package / Case | Horizontal, 4 PC Pin |
| Other Names | 237-2110 |
| Operating Temperature | -20°C ~ 105°C |
| Number of Lines | 2 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 15.5mH @ 10kHz |
| Height (Max) | 0.984" (25.00mm) |
| Filter Type | Power Line |
| Features | ESD |
| Detailed Description | 15.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 320 mOhm |
| DC Resistance (DCR) (Max) | 320 mOhm |
| Current Rating (Max) | 1.5A |
| Approvals | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 40236 pcs of Triad MagneticsET2825-030 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
