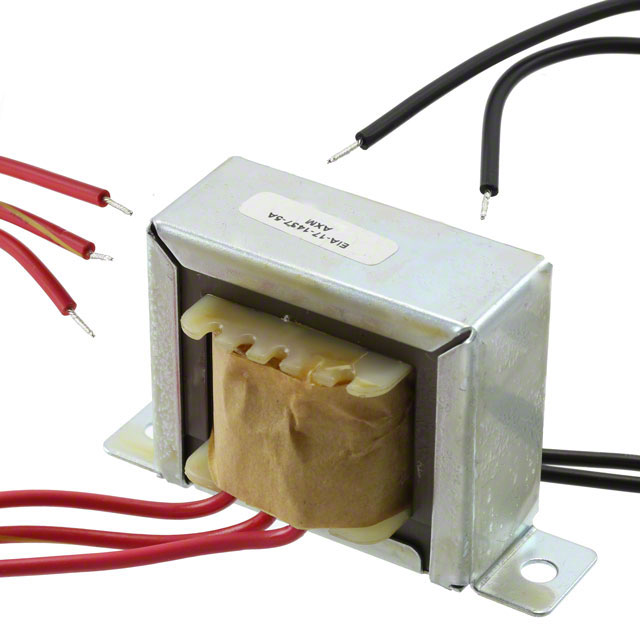

F-117X
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy F-117X with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy F-117X with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload F-117X Datasheet| Part Number | F-117X |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | F-117X |
|---|---|
| Manufacturer | Triad Magnetics |
| Product Category | Power Transformers |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12601 pcs |
| Datasheet | F-117X.pdf |
| Weight | 0.8 lb (362.87g) |
| Voltage - Secondary (Full Load) | 24V |
| Voltage - Primary | 115V |
| Voltage - Isolation | 1500Vrms |
| Type | Laminated Core |
| Termination Style | Wire Leads |
| Size / Dimension | 71.42mm L x 41.28mm W |
| Series | Single Secondary |
| Secondary Winding(s) | Single |
| Primary Winding(s) | Single |
| Power - Max | 9.6 VA |
| Other Names | 237-1904 |
| Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 41.28mm |
| Current - Output (Max) | 400mA |
| Center Tap | Yes |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Triad Magnetics series electronic components. We have 12601 pcs of Triad MagneticsF-117X in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
