STB18N60DM2
STMicroelectronics

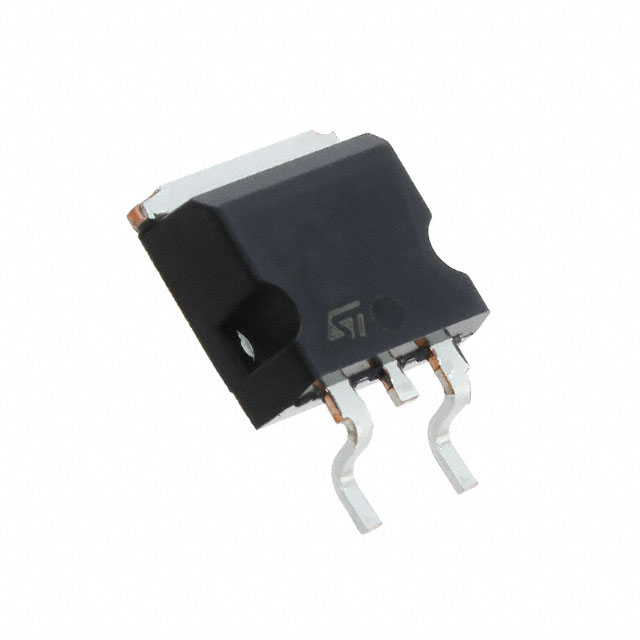

Images are for reference only.
See Product Specifications for product details.
Buy STB18N60DM2 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STB18N60DM2 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STB18N60DM2 Datasheet| Part Number | STB18N60DM2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 600V 12A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | ||
|---|---|---|---|---|---|---|
| $1.112 | $1.004 | $0.807 | $0.627 | |||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | STB18N60DM2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Description | MOSFET N-CH 600V 12A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60119 pcs |
| Datasheet | STB18N60DM2.pdf |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±25V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | D2PAK |
| Series | MDmesh™ DM2 |
| Rds On (Max) @ Id, Vgs | 295 mOhm @ 6A, 10V |
| Power Dissipation (Max) | 90W (Tc) |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Other Names | 497-16339-1 |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 800pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V |
| FET Type | N-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 12A (Tc) 90W (Tc) Surface Mount D2PAK |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 60119 pcs of STMicroelectronicsSTB18N60DM2 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
