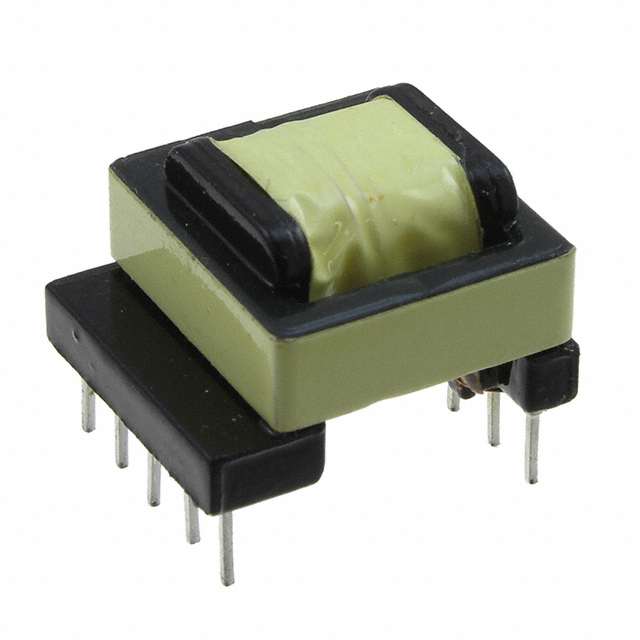

750813049
Midcom / Wurth Electronics
Images are for reference only.
See Product Specifications for product details.
Buy 750813049 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 750813049 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 750813049 Datasheet| Part Number | 750813049 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Description | OFFLINE XFRM WE-UNIT TI LM3447 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | 750813049 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Product Category | Switching Converter, SMPS Transformers |
| Description | OFFLINE XFRM WE-UNIT TI LM3447 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17053 pcs |
| Datasheet | 750813049.pdf |
| Voltage - Primary | 127 ~ 191V |
| Voltage - Isolation | 3000Vrms |
| Voltage - Auxiliary | 15V @ 20mA |
| Type | For DC/DC Converters |
| Size / Dimension | 0.665" L x 0.740" W (16.90mm x 18.80mm) |
| Series | WE-UNIT |
| Packaging | Tray |
| Other Names | 1297-1058 |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | LM3447 |
| Inductance @ Frequency | 1.3mH @ 70kHz |
| Height - Seated (Max) | 0.529" (13.44mm) |
| Frequency | 70kHz |
| Footprint | 0.665" L x 0.740" W (16.90mm x 18.80mm) |
| Chipset Manufacturer | Texas Instruments |
| Applications | LED Drivers, AC/DC SMPS |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Midcom / Wurth Electronics series electronic components. We have 17053 pcs of Midcom / Wurth Electronics750813049 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
