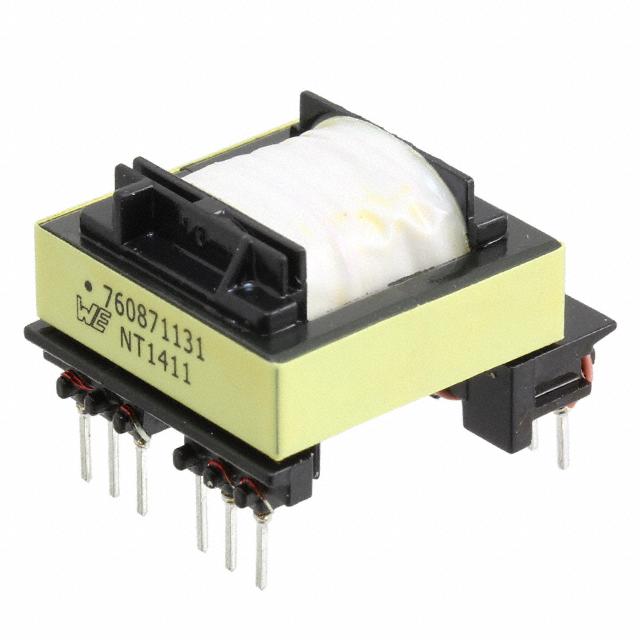

760871131
Midcom / Wurth Electronics
Images are for reference only.
See Product Specifications for product details.
Buy 760871131 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 760871131 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 760871131 Datasheet| Part Number | 760871131 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Description | OFFLINE XFRM WE-UNIT ST VIPER26 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | 760871131 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Product Category | Switching Converter, SMPS Transformers |
| Description | OFFLINE XFRM WE-UNIT ST VIPER26 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14148 pcs |
| Datasheet | 760871131.pdf |
| Voltage - Primary | 120 ~ 420V |
| Voltage - Isolation | 4000Vrms |
| Voltage - Auxiliary | 15V @ 100mA |
| Type | For AC/DC Converters |
| Size / Dimension | 0.874" L x 0.984" W (22.20mm x 25.00mm) |
| Series | WE-UNIT, MID-OLSTM |
| Packaging | Tray |
| Other Names | 1297-1063 |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | - |
| Inductance @ Frequency | 1.396mH @ 10kHz |
| Height - Seated (Max) | 0.635" (16.13mm) |
| Frequency | 60kHz |
| Footprint | 0.874" L x 0.984" W (22.20mm x 25.00mm) |
| Chipset Manufacturer | STMicroelectronics |
| Applications | LED Drivers, AC/DC SMPS |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Midcom / Wurth Electronics series electronic components. We have 14148 pcs of Midcom / Wurth Electronics760871131 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
