750815542
Midcom / Wurth Electronics

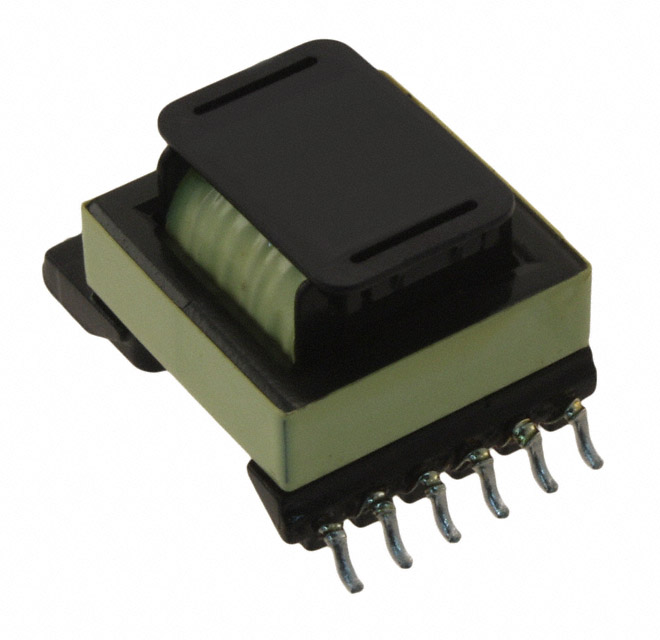

Images are for reference only.
See Product Specifications for product details.
Buy 750815542 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 750815542 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 750815542 Datasheet| Part Number | 750815542 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Description | TRANS 3000V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | 750815542 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Product Category | Switching Converter, SMPS Transformers |
| Description | TRANS 3000V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12500 pcs |
| Datasheet | 750815542.pdf |
| Voltage - Primary | 195 ~ 265V |
| Voltage - Isolation | 3000Vrms |
| Voltage - Auxiliary | - |
| Type | For AC/DC Converters |
| Size / Dimension | - |
| Series | WE-UNIT, MID-OLEE |
| Packaging | Tape & Reel (TR) |
| Other Names | 732-3311-2 |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | - |
| Inductance @ Frequency | 5mH @ 10kHz |
| Height - Seated (Max) | 0.548" (13.92mm) |
| Frequency | 80 ~ 200kHz |
| Footprint | 0.700" L x 1.028" W (17.78mm x 26.10mm) |
| Chipset Manufacturer | - |
| Applications | LED Drivers, AC/DC SMPS |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Midcom / Wurth Electronics series electronic components. We have 12500 pcs of Midcom / Wurth Electronics750815542 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
