750811146
Midcom / Wurth Electronics

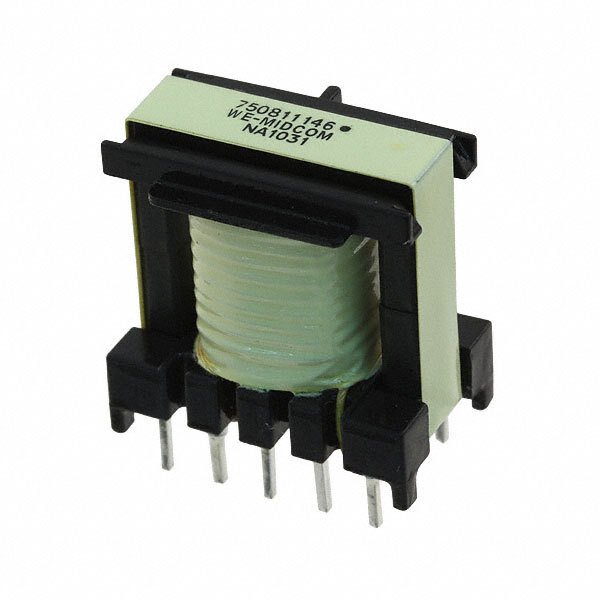

Images are for reference only.
See Product Specifications for product details.
Buy 750811146 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy 750811146 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload 750811146 Datasheet| Part Number | 750811146 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Description | TRANSFORMER FLYBACK TPS92210 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | 750811146 |
|---|---|
| Manufacturer | Midcom / Wurth Electronics |
| Product Category | Switching Converter, SMPS Transformers |
| Description | TRANSFORMER FLYBACK TPS92210 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8173 pcs |
| Datasheet | 750811146.pdf |
| Voltage - Primary | 88 ~ 269V |
| Voltage - Isolation | 3750Vrms |
| Voltage - Auxiliary | - |
| Type | For AC/DC Converters |
| Size / Dimension | 0.876" L x 0.567" W (22.88mm x 14.40mm) |
| Series | WE-UNIT, MID-OLTI |
| Packaging | Tray |
| Other Names | 732-3184 |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | PMP6001, TPS92210 |
| Inductance @ Frequency | 430µH @ 65kHz |
| Height - Seated (Max) | 0.878" (22.30mm) |
| Frequency | 130kHz |
| Footprint | 0.876" L x 0.567" W (22.25mm x 14.40mm) |
| Chipset Manufacturer | Texas Instruments |
| Applications | Flyback Converters |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Midcom / Wurth Electronics series electronic components. We have 8173 pcs of Midcom / Wurth Electronics750811146 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
