STGAP1STR
STMicroelectronics

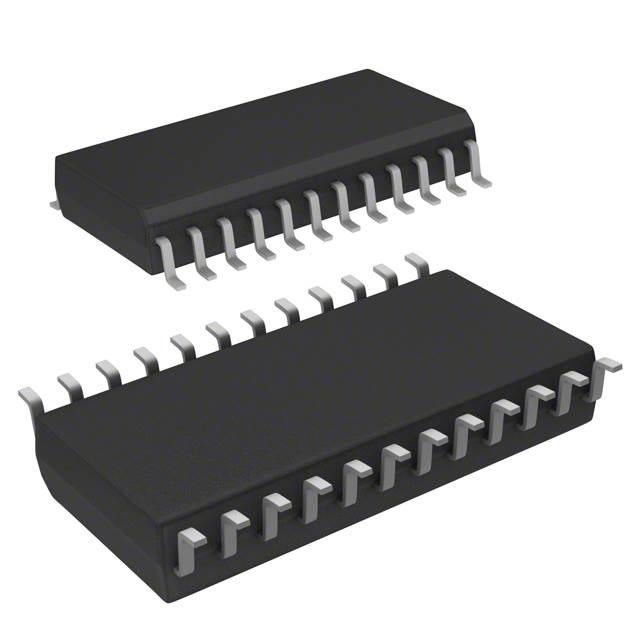

Images are for reference only.
See Product Specifications for product details.
Buy STGAP1STR with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy STGAP1STR with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload STGAP1STR Datasheet| Part Number | STGAP1STR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | DGTL ISO 2.5KV 1CH GATE DVR 24SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
Product parameter
| Part Number | STGAP1STR |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Isolators - Gate Drivers |
| Description | DGTL ISO 2.5KV 1CH GATE DVR 24SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26045 pcs |
| Datasheet | STGAP1STR.pdf |
| Voltage - Supply | 4.5 V ~ 36 V |
| Voltage - Isolation | 2500Vrms |
| Voltage - Forward (Vf) (Typ) | - |
| Technology | Magnetic Coupling |
| Supplier Device Package | 24-SO |
| Series | Automotive, AEC-Q100, gapDRIVE™ |
| Rise / Fall Time (Typ) | 25ns, 25ns (Max) |
| Pulse Width Distortion (Max) | 10ns |
| Propagation Delay tpLH / tpHL (Max) | 130ns, 130ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Other Names | 497-16415-2 STGAP1STR-ND |
| Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Gate Driver Magnetic Coupling 2500Vrms 1 Channel 24-SO |
| Current - Peak Output | - |
| Current - Output High, Low | 2.5A, 2.5A |
| Common Mode Transient Immunity (Min) | - |
| Approvals | UL |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all STMicroelectronics series electronic components. We have 26045 pcs of STMicroelectronicsSTGAP1STR in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
